MDD(Microdiode Semiconductor)Datasheet (PDF)

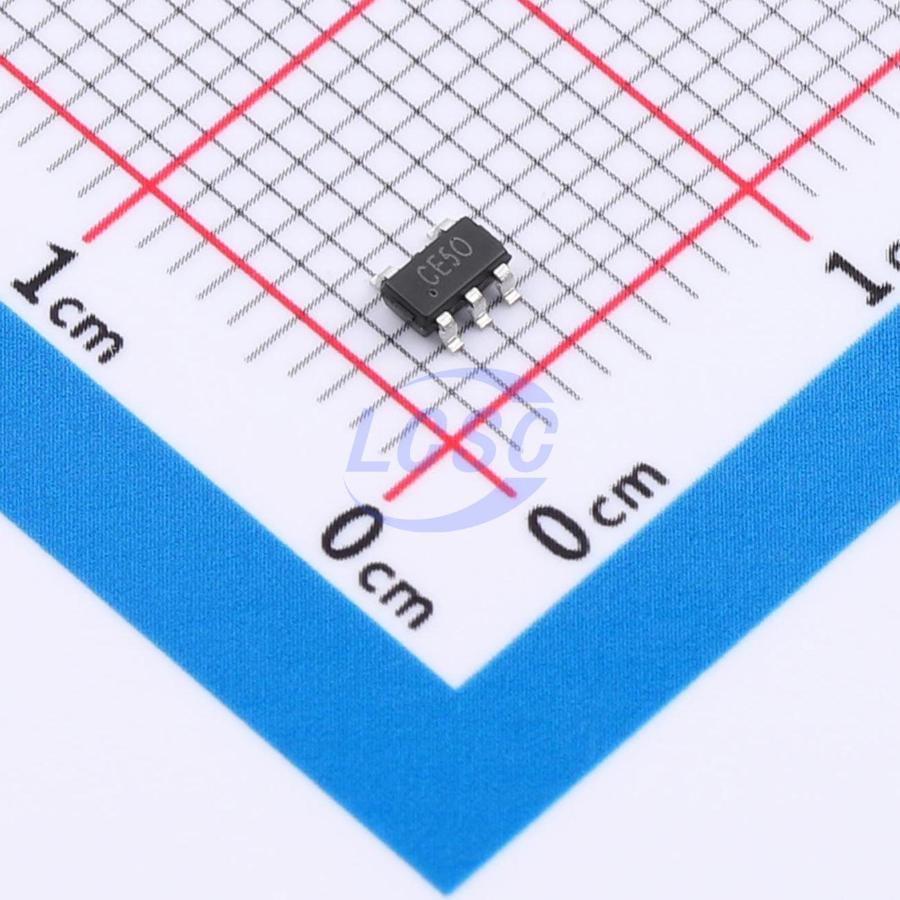

74AHCT1G32GV
TTL-compatible CMOS 4.5V~5.5V 8.5ns@5.5V,15pF 40uA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHCT1G32GV
- Store part #
- C52140415
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,772 in stock
#C52140415
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.54 | ₹12.54 |
| 10+ | ₹9.88 | ₹98.80 |
| 30+ | ₹8.56 | ₹256.80 |
| 100+ | ₹7.55 | ₹755.00 |
| 500+ | ₹6.76 | ₹3,380.00 |
| 1,000+ | ₹6.36 | ₹6,360.00 |
1 × ₹12.54
₹12.54
excl. GST
₹14.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G32GV
₹12.54 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT1G32
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 8.5ns@5.5V,15pF
- Output Logic Level - Low
- 550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.083 g
Overview
74AHC1G32 and 74AHCT1G32 are single 2-input OR gates. The inputs are overvoltage tolerant, allowing these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels:
- 74AHC1G32: CMOS level
- 74AHCT1G32: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
