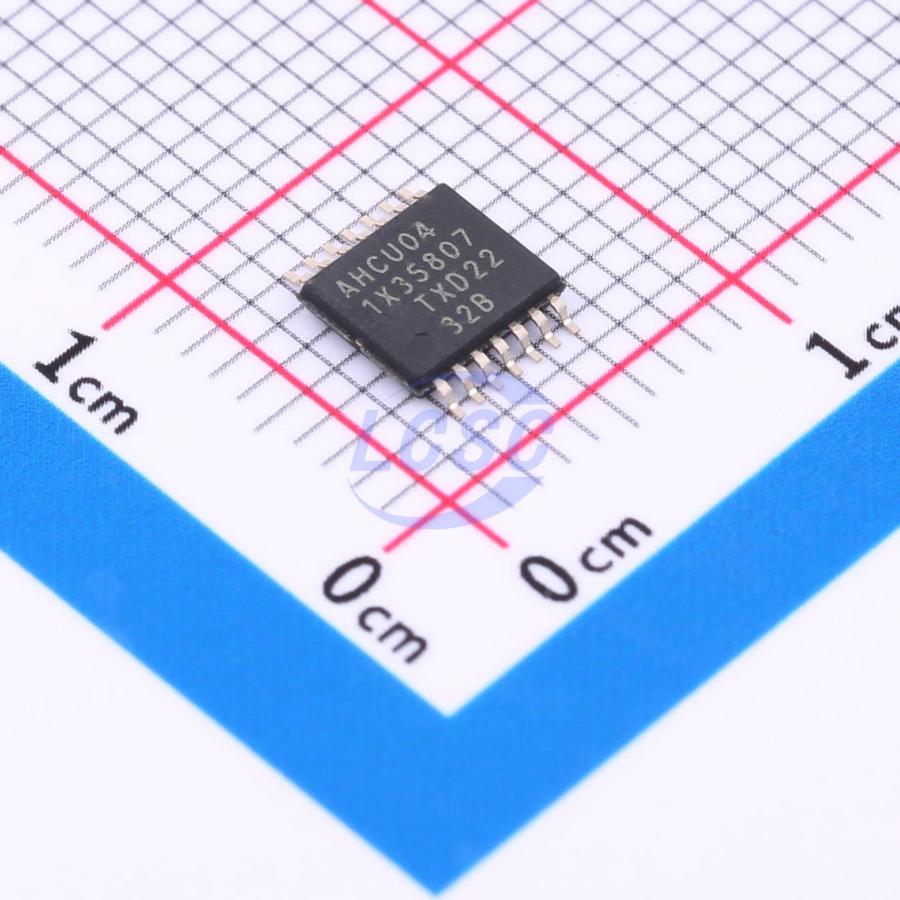

74AHCU04PW-Q100J

StandardCMOS 2V~5.5V 7ns@5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

Hex unbuffered inverter

Manufacturer: Nexperia
Manufacturer part #: 74AHCU04PW-Q100J
Store part #: C554726
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

27,460 in stock

#C554726

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
5+	₹32.11	₹160.55
50+	₹25.08	₹1,254.00
150+	₹22.07	₹3,310.50
500+	₹18.31	₹9,155.00
2,500+	₹16.64	₹41,600.00
5,000+	₹15.64	₹78,200.00

Quantity (min 5, multiples of 5)

5 × ₹32.11

₹160.55

excl. GST

₹189.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74AHCU04PW-Q100J

₹160.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74AHCU
Input Type: StandardCMOS
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 200mV;300mV;500mV
Propagation Delay: 7ns@5V,50pF
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 300mV~1.1V
Input Logic Level - High: 1.7V~4.4V
Output Logic Level - High: 1.8V;2.7V;4V
Quiescent Current(Iq): 2uA
Current - Output High(IOH): 8mA
Number of Channels: 6
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.169 g

Overview

The 74AHCU04-Q100 is high-speed Si-gate CMOS device and is pin compatible with low-power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7A. The 74AHCU04-Q100 is a general-purpose hex unbuffered inverter. Each of the six inverters is a single stage. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Linear amplifier
In crystal oscillator design

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Low power dissipation
Balanced propagation delays
Inputs accept voltages higher than VCC
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
DHVQFN package with Side-Wettable Flanks enabling Automatic Optical Inspection (AOI) of solder joints
