TECH PUBLICDatasheet (PDF)

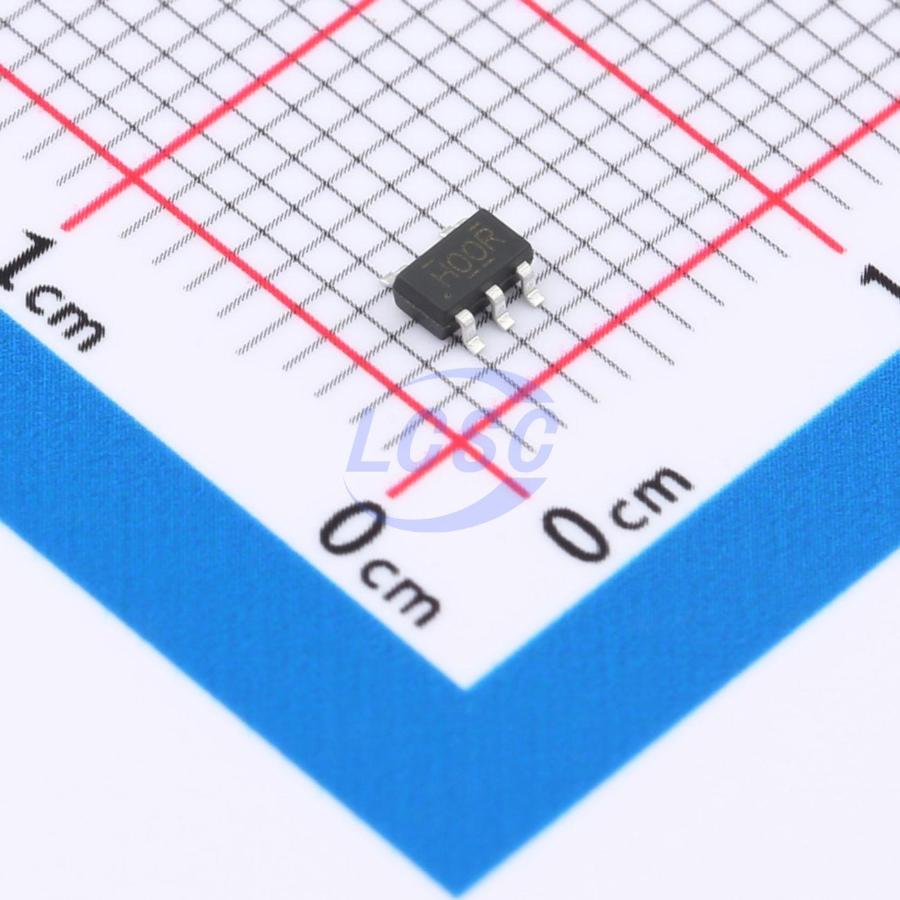

74AUP1G00GV-TP
NAND Gate IC 1 Channel SOT23-5
SOT23-5ROHS CompliantActive
SINGLE 2-INPUT NAND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G00GV-TP
- Store part #
- C49230937
- Package / case
- SOT23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C49230937
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.80 | ₹98.00 |
| 100+ | ₹7.75 | ₹775.00 |
| 300+ | ₹6.72 | ₹2,016.00 |
| 3,000+ | ₹5.95 | ₹17,850.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
| 9,000+ | ₹5.03 | ₹45,270.00 |
10 × ₹9.80
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G00GV-TP
₹98.00 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 2.05V~2.72V;1.9V~2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 310mV~440mV
- Propagation Delay
- 3.3ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
74AUP1G00 is a 2-input NAND gate that performs the function Y = A·B or Y = A + B in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC voltage range of 0.8V to 3.6V.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; max I<sub>CC</sub> = 0.5μA
- ESD protection exceeds JESD 22: HBM 2000V, MM 200V, CDM 1000V
