DIODES

74AUP1G14FZ4-7

Schmitt trigger 800mV~3.6V 6.1ns@3.3V,30pF 500nA 1 X2-DFN1410-6 Gates and Inverters RoHS

X2-DFN1410-6ROHS3 CompliantActive

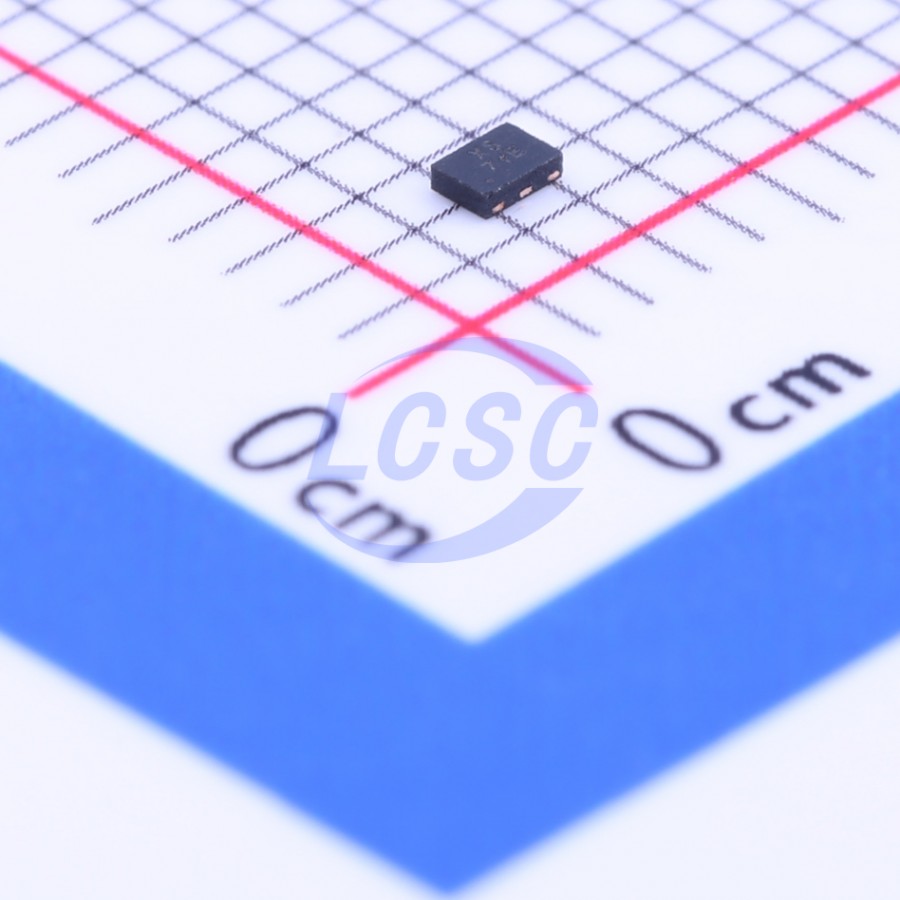

Single Schmitt-Trigger Inverter

Manufacturer: DIODES
Manufacturer part #: 74AUP1G14FZ4-7
Store part #: C155351
Package / case: X2-DFN1410-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,690 in stock

#C155351

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.65	₹93.25
50+	₹14.92	₹746.00
150+	₹13.06	₹1,959.00
500+	₹11.67	₹5,835.00
2,500+	₹10.54	₹26,350.00
5,000+	₹9.99	₹49,950.00

Quantity (min 5, multiples of 5)

5 × ₹18.65

₹93.25

excl. GST

₹110.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74AUP1G14FZ4-7

₹93.25 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 6.1ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 650mV~2.32V
Input Logic Level - Low: 150mV~880mV
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 500nA
Number of Channels: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

The Advanced, Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The AUP1G14 is a single, one-input Schmitt-Trigger inverter gate with a standard push-pull output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A(overline)

Applications

Suited for Battery and Low Power Needs Wide array of products such as:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS Systems
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs
CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes

Key features

Advanced Ultra Low Power (AUP) CMOS Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption Icc < 0.9μA
Low Dynamic Power Consumption Cpd = 6.2pF (Typical at 3.6V)
Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall time. The hysteresis is typically 250mV at Vcc = 3.0V
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
