NexperiaDatasheet (PDF)

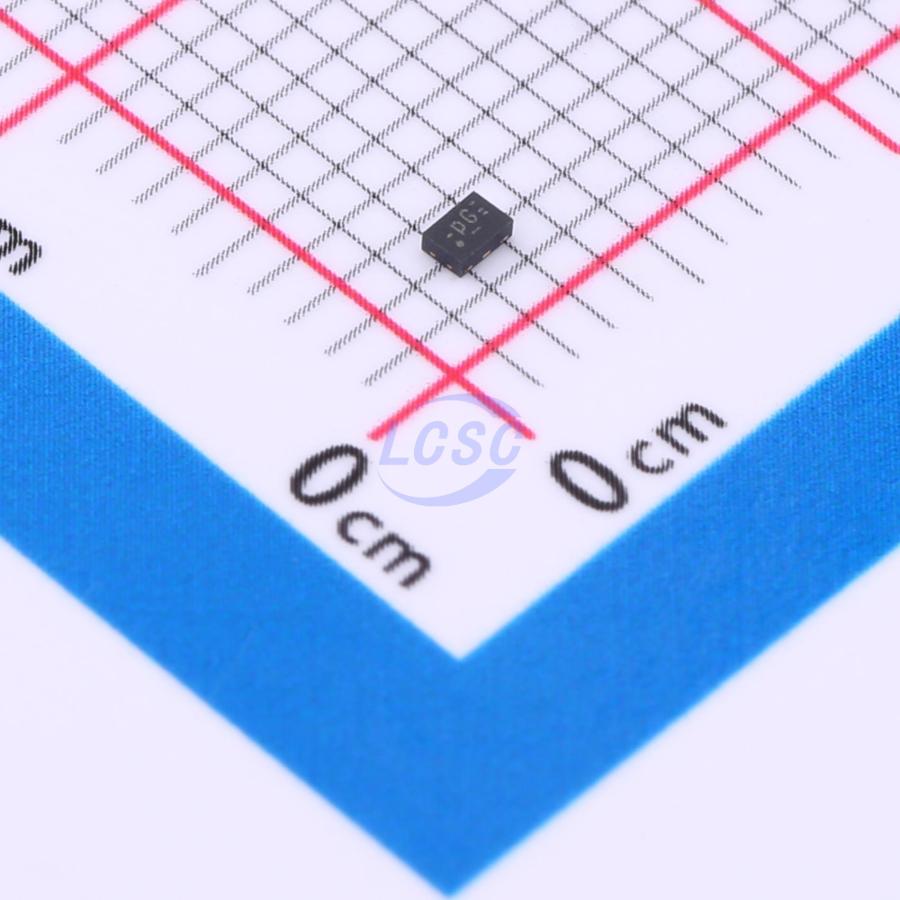

74AUP1G32GM,115
Schmitt trigger 800mV~3.6V 6.4ns@3.3V,30pF 500nA XSON-6(1x1.5) Gates and Inverters RoHS
XSON-6(1x1.5)ROHS3 CompliantActive
Low-power 2-input OR-gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AUP1G32GM,115
- Store part #
- C545826
- Package / case
- XSON-6(1x1.5)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,965 in stock
#C545826
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.70 | ₹113.50 |
| 50+ | ₹20.00 | ₹1,000.00 |
| 150+ | ₹18.85 | ₹2,827.50 |
| 500+ | ₹17.41 | ₹8,705.00 |
| 2,500+ | ₹16.76 | ₹41,900.00 |
| 5,000+ | ₹16.38 | ₹81,900.00 |
5 × ₹22.70
₹113.50
excl. GST
₹133.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74AUP1G32GM,115
₹113.50 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP Series
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 310mV;500mV
- Propagation Delay
- 6.4ns@3.3V,30pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 700mV~900mV
- Input Logic Level - High
- 1.6V~2V
- Output Logic Level - High
- 2.3V;2.72V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The 74AUP1G32 is a single 2-input OR gate. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures very low static and dynamic power consumption across the entire V_CC range from 0.8 V to 3.6 V. This device is fully specified for partial power down applications using I_OFF. The I_OFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G32GM-Q100X#C545828Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 10 | ₹139.50 · 10 in stock | View |
 | 74AUP1G32FW4-7#C842366DIODES · X2-DFN1010-6 | DIODES | X2-DFN1010-6 | On request | Price on request | Quote |
| 74AUP1G32FZ4-7#C842389DIODES · X2-DFN1410-6 | DIODES | X2-DFN1410-6 | On request | Price on request | Quote | |
 | SN74AUP1G32DRYR#C2862233TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | On request | Price on request | Quote |
| 74AUP1G32GM,132#C545827Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | On request | Price on request | Quote | |
