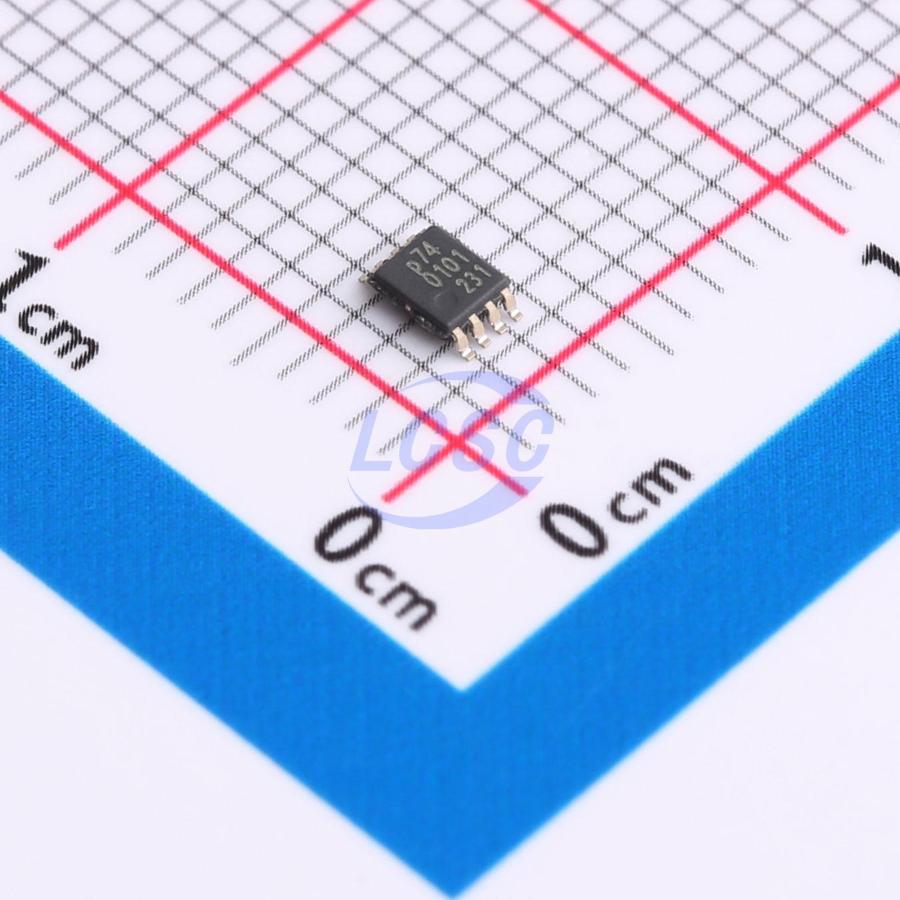

74AUP1G74DC-Q100H

800mV~3.6V 1 1 2.2ns@3V,30pF VSSOP-8-0.5mm Flip Flops RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Low-power D-type flip-flop with set and reset; positive-edge trigger

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,710 in stock

#C545886

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹69.64

₹69.64

excl. GST

₹82.18 incl. 18% GST

74AUP1G74DC-Q100H

₹69.64 for 1 + GST

Specifications

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Wide supply voltage range from 0.8 V to 3.6 V
CMOS low power dissipation
High noise immunity
Overvoltage tolerant inputs to 3.6 V
Low static power consumption; I₍CC₎ = 0.9 μA (maximum)
Latch-up performance exceeds 100 mA per JESD 78 Class II
Low noise overshoot and undershoot < 10% of V₍CC₎
IOFF circuitry provides partial Power-down mode operation
Complies with JEDEC standards: JESD8-12 (0.8 V to 1.3 V), JESD8-11 (0.9 V to 1.65 V), JESD8-7 (1.2 V to 1.95 V), JESD8-5 (1.8 V to 2.7 V), JESD8C (2.7 V to 3.6 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AiP74AUP1G74YA8.TR#C52121079Wuxi I-core Elec · VSSOP-8	Wuxi I-core Elec	VSSOP-8	2,845	₹44.39 · 2,845 in stock	View
74AUP1G74DC,125#C458192Nexperia · VSSOP-8	Nexperia	VSSOP-8	14,430	₹47.01 · 14,430 in stock	View
SN74AUP1G74DCUR-JSM#C53114336JSMSEMI · VSSOP-8	JSMSEMI	VSSOP-8	1,735	₹37.64 · 1,735 in stock	View
74LVC2G74DC,125#C478186Nexperia · VSSOP-8-0.5mm	Nexperia	VSSOP-8-0.5mm	2,438	₹57.38 · 2,438 in stock	View
74LVC2G74DC-Q100H#C548673Nexperia · VSSOP-8-0.5mm	Nexperia	VSSOP-8-0.5mm	1,295	₹45.99 · 1,295 in stock	View
