TECH PUBLIC

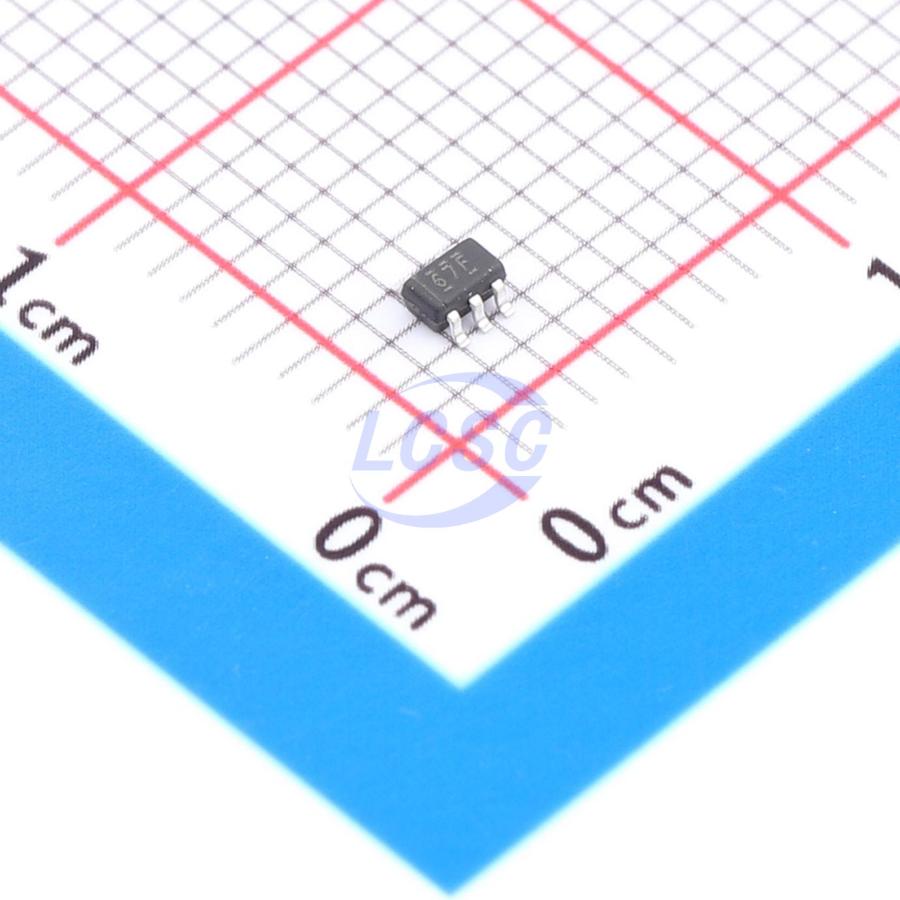

74AUP1T17GWH-TP

1 1 SOT-353 Translators, Level Shifters RoHS

SOT-353ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74AUP1T17GWH-TP
Store part #: C51939526
Package / case: SOT-353
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,790 in stock

#C51939526

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹12.54	₹62.70
50+	₹9.83	₹491.50
150+	₹8.48	₹1,272.00
500+	₹7.47	₹3,735.00
3,000+	₹6.65	₹19,950.00
6,000+	₹6.26	₹37,560.00

Quantity (min 5, multiples of 5)

5 × ₹12.54

₹62.70

excl. GST

₹73.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1T17GWH-TP

₹62.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Input Signal: CMOS
Number of Elements: 1
Channel Type: Unidirectional
Features: Power-off protection
Voltage - Supply: 2.3V~3.6V;2.3V~3.6V
Number of Circuits: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

The 74AUP1T17GWH-TP provides a single buffer function. The device ensures ultra-low static and dynamic power consumption across the entire VCC supply voltage range of 2.3V to 3.6V. The device is designed for logic level translation applications, with input switching levels that accept 1.8V low-voltage CMOS signals while operating from a single 2.5V or 3.3V supply voltage. The wide supply voltage range ensures proper operation as the battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs allow the circuit to tolerate slower input rise and fall times across the entire VCC range.

Applications

AV Receivers
Audio Docking Stations: Portable
Blu-ray Players and Home Theater
Embedded PC
Personal Digital Assistants (PDA)
Power Supplies: Telecom/Server AC/DC: Single Controller: Analog and Digital
Solid State Drives (SSD): Client and Enterprise
Wireless Headsets, Keyboards and Mice

Key features

Wide supply voltage range: 2.3V to 3.6V
Inputs accept voltages up to 3.6V
I<sub>OFF</sub> supports partial power-down mode
Low quiescent current; I<sub>CC</sub> = 1.5μA (maximum)
ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
