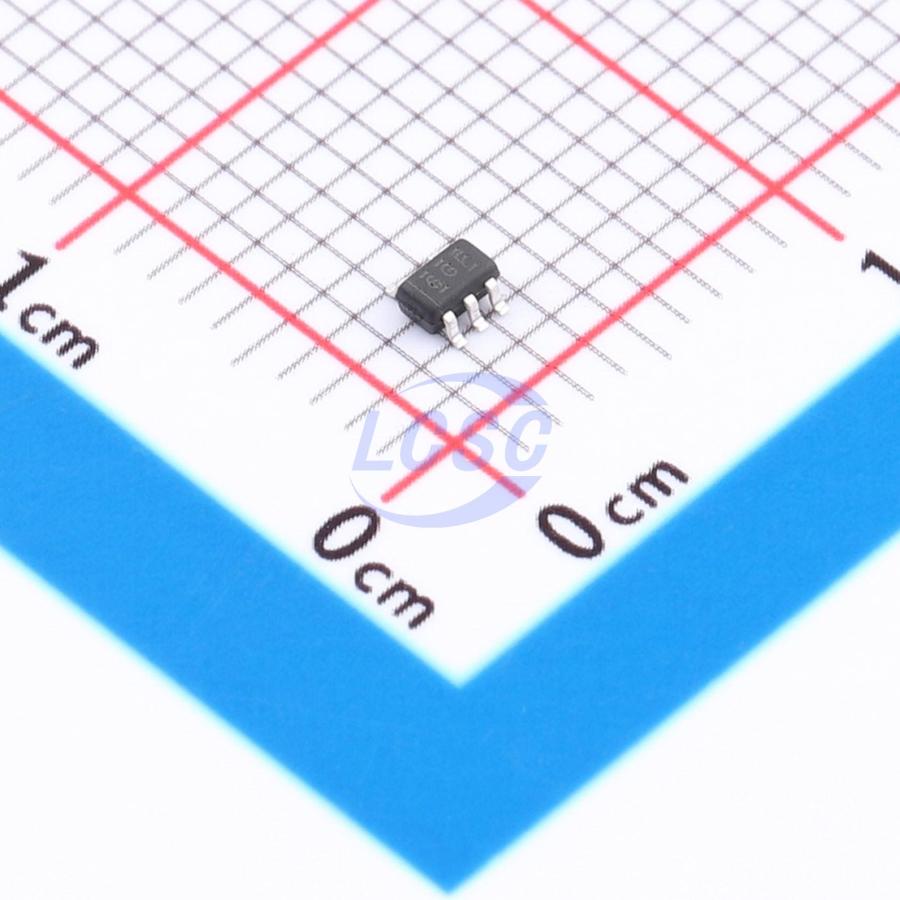

74AUP1T32GWH-TP
Schmitt trigger 2.3V~3.6V 6.9ns@3V,30pF 1.5uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1T32GWH-TP
- Store part #
- C51939527
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C51939527
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.47 | ₹3,735.00 |
| 3,000+ | ₹6.65 | ₹19,950.00 |
| 6,000+ | ₹6.26 | ₹37,560.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1T32GWH-TP
₹62.70 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP
- Voltage - Supply
- 2.3V~3.6V
- Propagation Delay
- 6.9ns@3V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.6V
- Quiescent Current(Iq)
- 1.5uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The 74AUP1T32GWH-TP device provides a single 2-input OR gate function. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 2.3V to 3.6V. The design is suitable for logic level translation applications, with input switching levels capable of accepting 1.8V low-voltage CMOS signals while being powered by a single 2.5V or 3.3V supply voltage. The wide supply voltage range ensures proper operation as the battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs make the circuit tolerant of slow input rise and fall times across the entire VCC range.
Applications
- AV receiver
- Embedded PC
- Solid-state drive
Key features
- Wide supply voltage range: 2.3V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; ICC = 1.5μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1T32DCKR-TP#C51939608TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,860 | ₹13.32 · 2,860 in stock | View |
