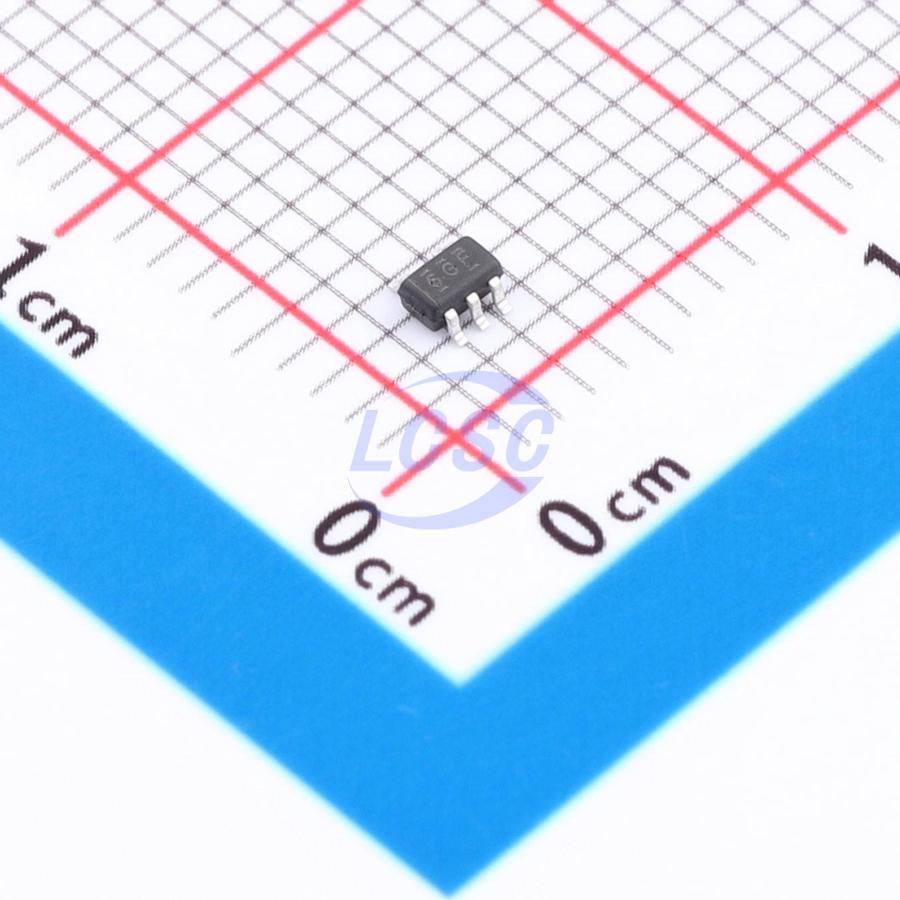

SN74AUP1T32DCKR-TP
Schmitt trigger 2.3V~3.6V 6.9ns@3V,30pF 1.5uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1T32DCKR-TP
- Store part #
- C51939608
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C51939608
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.32 | ₹66.60 |
| 50+ | ₹10.49 | ₹524.50 |
| 150+ | ₹9.08 | ₹1,362.00 |
| 500+ | ₹8.02 | ₹4,010.00 |
| 3,000+ | ₹7.16 | ₹21,480.00 |
| 6,000+ | ₹6.73 | ₹40,380.00 |
5 × ₹13.32
₹66.60
excl. GST
₹78.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1T32DCKR-TP
₹66.60 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP
- Voltage - Supply
- 2.3V~3.6V
- Output Logic Level - Low
- 450mV
- Propagation Delay
- 6.9ns@3V,30pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 1.5uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This device provides a single 2-input OR gate function. It ensures ultra-low static and dynamic power consumption across the full VCC range of 2.3V to 3.6V. The design is suited for logic level translation applications, with input switching levels that accept 1.8V low-voltage CMOS signals while operating from a single 2.5V or 3.3V supply voltage. The wide supply voltage range ensures proper operation as battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs make the circuit tolerant of slower input rise and fall times across the full VCC range.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 2.3V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 1.5μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1T32GWH-TP#C51939527TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,800 | ₹12.54 · 2,800 in stock | View |
