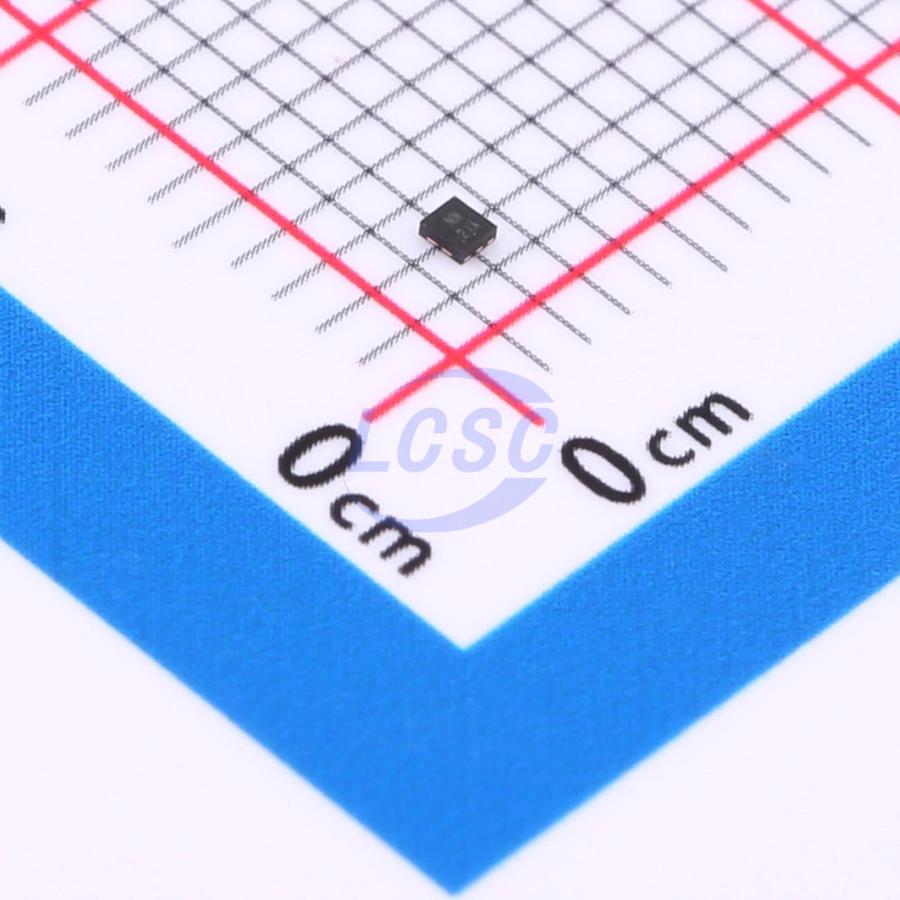

DIODES

74AUP2G04FW3-7

Schmitt trigger 800mV~3.6V 5.4ns@3.3V,30pF 500nA 2 X2-DFN0910-6 Gates and Inverters RoHS

X2-DFN0910-6ROHS3 CompliantActive

DUAL INVERTERS

Manufacturer: DIODES
Manufacturer part #: 74AUP2G04FW3-7
Store part #: C842395
Package / case: X2-DFN0910-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,810 in stock

#C842395

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹10.72	₹53.60
50+	₹9.49	₹474.50
150+	₹8.88	₹1,332.00
500+	₹8.41	₹4,205.00
2,500+	₹8.04	₹20,100.00
5,000+	₹7.86	₹39,300.00

Quantity (min 5, multiples of 5)

5 × ₹10.72

₹53.60

excl. GST

₹63.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

74AUP2G04FW3-7

₹53.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 5.4ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.6V~2V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV~900mV
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The Advanced Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP2G04 is composed of two inverters with standard push-pull outputs designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gates perform the positive Boolean function: Y = A(overline)

Applications

PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS MP3 players, Cameras, Video Recorders

Key features

Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption
ICC < 0.9μA
Low Dynamic Power Consumption
CpD = 4pF Typical at 3.6V
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time. The Hysteresis is Typically 250mV at VCC = 3.0V
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection per JESD 22 Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless packages per JESD30E
DFN1410 denoted as X2-DFN1410-6
DFN1010 denoted as X2-DFN1010-6
DFN0910 denoted as X2-DFN0910-6
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
