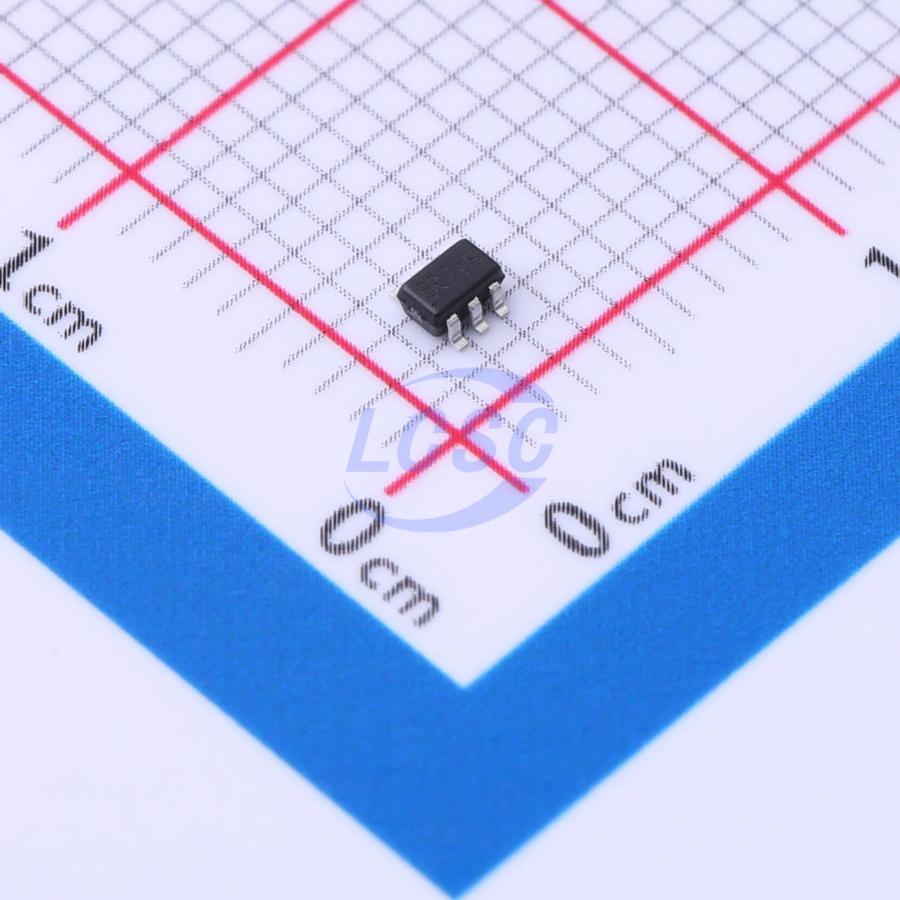

Dual Schmitt Trigger Inverters

Manufacturer: DIODES
Manufacturer part #: 74AUP2G14DW-7
Store part #: C526337
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,215 in stock

#C526337

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.37	₹101.85
50+	₹17.95	₹897.50
150+	₹16.92	₹2,538.00
500+	₹15.62	₹7,810.00
3,000+	₹15.04	₹45,120.00
6,000+	₹14.70	₹88,200.00

Quantity (min 5, multiples of 5)

5 × ₹20.37

₹101.85

excl. GST

₹120.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP2G14DW-7

₹101.85 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 5.4ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - Low: 100mV~880mV
Input Logic Level - High: 600mV~2.29V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The Advanced Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP2G14 is composed of two Schmitt trigger inverters with standard push-pull outputs designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gates perform the positive Boolean function: Υ = A(overline)

Applications

PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption
ICC < 0.9μA
Low Dynamic Power Consumption
CpD = 4pF Typical at 3.6V
Schmitt trigger action at all Inputs makes the circuit tolerant for slower input rise and fall time.
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection per JESD 22: Exceeds 200-V Machine Model (A115); Exceeds 2000-V Human Body Model (A114); Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages per JESD30E: DFN1410 denoted as X2-DFN1410-6; DFN1010 denoted as X2-DFN1010-6; DFN0910 denoted as X2-DFN0910-6
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
