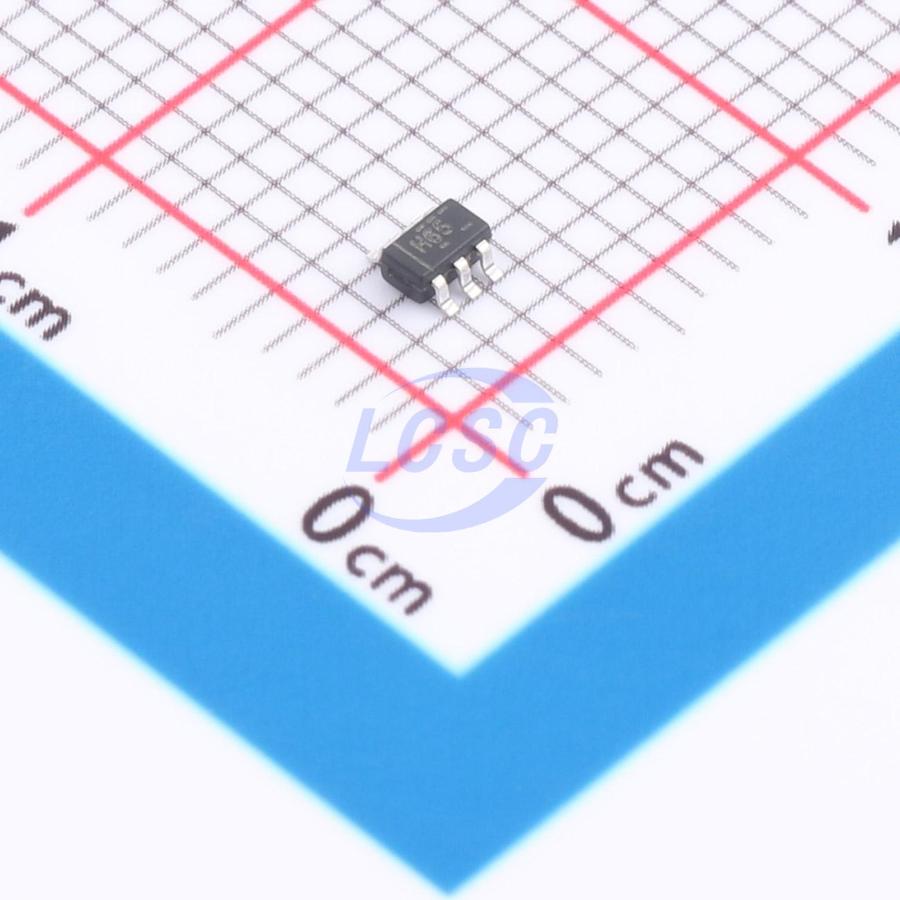

TP74AUP2G14C6
Schmitt trigger 800mV~3.6V 2.1ns@3.3V,5pF 500nA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP2G14C6
- Store part #
- C51886119
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C51886119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.66 | ₹53.30 |
| 50+ | ₹8.37 | ₹418.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.32 | ₹31,920.00 |
5 × ₹10.66
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP2G14C6
₹53.30 for 5 + GST
Specifications
- Logic Family
- 74AUP
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 2.1ns@3.3V,5pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
TP74AUP2G14 is a dual inverter with Schmitt-trigger inputs. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs.
Applications
- Audio/video receivers
- Embedded PCs
- Personal digital assistants
- Power supplies
- Solid-state drives
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
