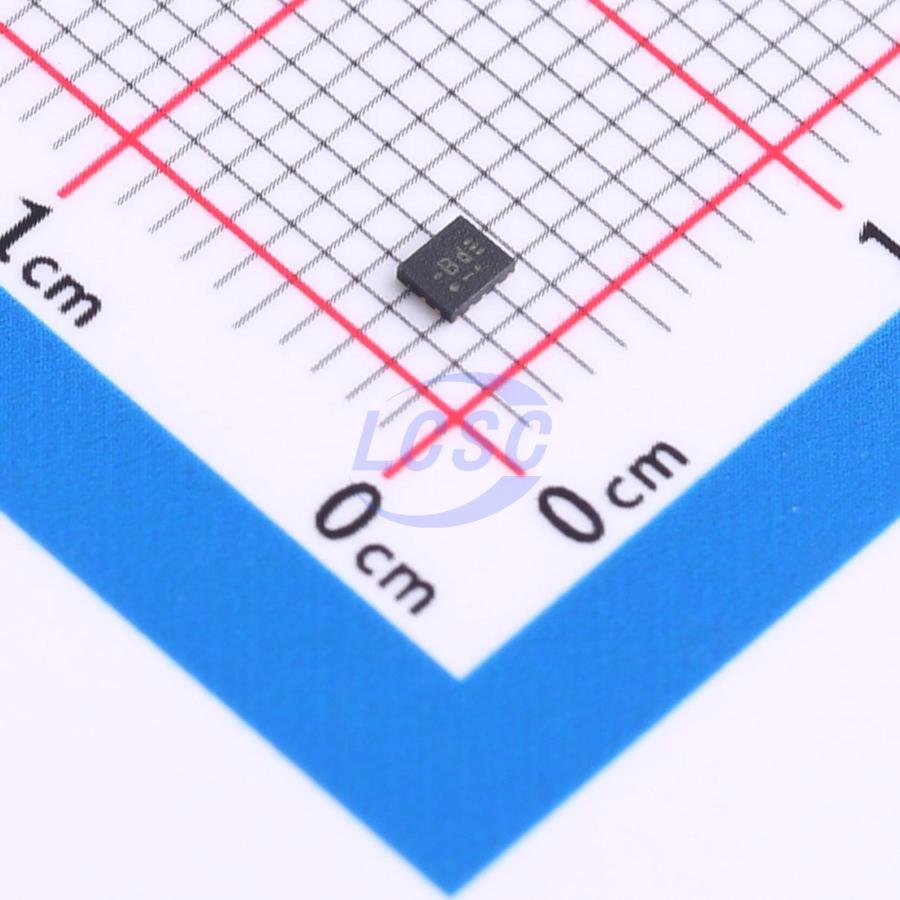

74AVC4T3144GU12X

The 74AVC4T3144 is a 4-bit, dual-supply level translating buffer with 3-state outputs. It features four data inputs (An and B4), four data outputs (YBn and YA4), and an output enable input (OE). The device is configured to translate three inputs from VCC(A) to VCC(B) and one input from VCC(B) to VCC(A). OE, An and YA4 are referenced to VCC(A) and YBn and B4 are referenced to VCC(B) . A HIGH on OE causes the outputs to assume a high-impedance OFF-state. The device is fully specified for partial power-down applications using lOFF. The IOFF circuitry disables outputs, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, all outputs are in the high-impedance OFF-state.

Applications

• 4-bit dual-supply buffer/level translator; 3-state
• Partial power-down applications
• Suspend mode
• Level translation between different supply voltages
• High-speed data transfer (up to 380 Mbit/s)
• ESD protection
• Latch-up performance
• Wide supply voltage range (0.8 V to 3.6 V)
• JEDEC compliant
• Input and output voltage levels
• Power-down leakage current
• Static and dynamic characteristics
• Propagation delay, enable time, and disable time
• Dissipation capacitance

Key features

• Wide supply voltage range:
• VCC(A): 0.8 V to 3.6 V VCC(B): 0.8 V to 3.6 V
• Complies with JEDEC standards:
• JESD8-12 (0.8 V to 1.3 V)
• JESD8-11 (0.9 V to 1.65 V)
• JESD8-7 (1.2 V to 1.95 V)
• JESD8-5 (1.8 V to 2.7 V) JESD8-B (2.7 V to 3.6 V)
• Maximum data rates:
• 380 Mbit/s (≥ 1.8 V to 3.3 V translation)
• 200 Mbit/s (≥ 1.1 V to 3.3 V translation)
• 200 Mbit/s (≥ 1.1 V to 2.5 V translation)
• 200 Mbit/s (≥ 1.1 V to 1.8 V translation)
• 150 Mbit/s (≥ 1.1 V to 1.5 V translation)
• 100 Mbit/s (≥ 1.1 V to 1.2 V translation)
• Suspend mode
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• Inputs accept voltages up to 3.6 V
• IOFF circuitry provides partial Power-down mode operation
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 8000 V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
• 4-bit dual-supply buffer/level translator; 3-state
