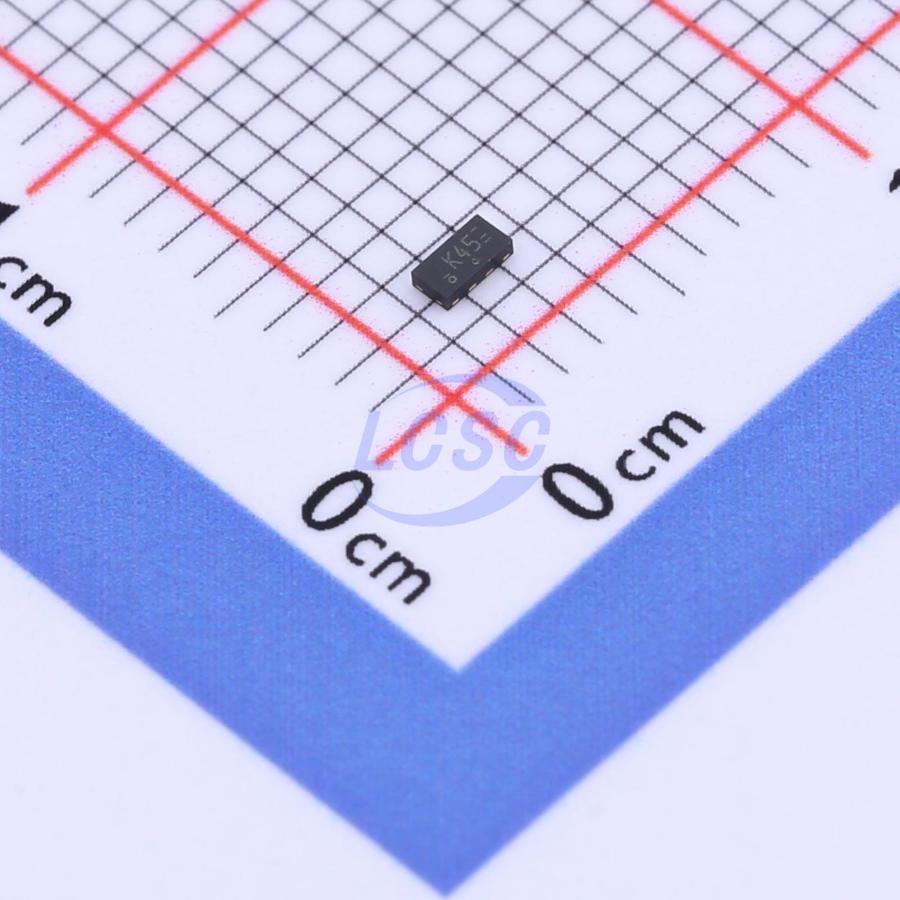

74AVCH2T45GT,115
500Mbps 1 2 XSON-8(1x2) Translators, Level Shifters RoHS
Dual-bit, dual-supply voltage level translator/transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AVCH2T45GT,115
- Store part #
- C546296
- Package / case
- XSON-8(1x2)
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C546296
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.74 | ₹228.70 |
| 50+ | ₹35.85 | ₹1,792.50 |
| 150+ | ₹31.62 | ₹4,743.00 |
| 500+ | ₹26.33 | ₹13,165.00 |
| 2,500+ | ₹23.99 | ₹59,975.00 |
| 5,000+ | ₹22.57 | ₹1,12,850.00 |
5 × ₹45.74
₹228.70
excl. GST
₹269.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74AVCH2T45GT,115
₹228.70 for 5 + GST
Specifications
- output type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Data Rate
- 500Mbps
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Power-off protection
- Voltage - Supply
- 800mV~3.6V;800mV~3.6V
- Number of Circuits
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The 74AVCH2T45 is a dual bit, dual supply transceiver that enables bidirectional level translation. It features two data input-output ports (nA and nB), a direction control input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins nA and DIR are referenced to VCC(A) and pins nB are referenced to VCC(B). A HIGH on DIR allows transmission from nA to nB and a LOW on DIR allows transmission from nB to nA. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, both A and B are in the high-impedance OFF-state. The 74AVCH2T45 has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.
Key features
- Wide supply voltage range: 0.8 V to 3.6 V for VCC(A) and VCC(B)
- High noise immunity
- Suspend mode
- Bus hold on data inputs
- Inputs accept voltages up to 3.6 V
- Low noise overshoot and undershoot <10 % of VCC
- IOFF circuitry provides partial Power-down mode operation
- Maximum data rates: 500 Mbps (1.8 V to 3.3 V translation)
- 320 Mbps (≤1.8 V to 3.3 V translation)
- 320 Mbps (translate to 2.5 V or 1.8 V)
- 280 Mbps (translate to 1.5 V)
- 240 Mbps (translate to 1.2 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II
- Complies with JEDEC standards:
- JESD8-12 (0.8 V to 1.3 V)
- JESD8-11 (0.9 V to 1.65 V)
- JESD8-7 (1.2 V to 1.95 V)
- JESD8-5 (1.8 V to 2.7 V)
- JESD8-B (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 8000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74AVC2T45GT-Q100X#C546263Nexperia · XSON-8(1x2) | Nexperia | XSON-8(1x2) | 238 | ₹39.32 · 238 in stock | View | |
 | 74AVC2T45GT,115#C546262Nexperia · XSON-8(1x2) | Nexperia | XSON-8(1x2) | On request | ₹139.66 · 0 in stock | View |
