XBLWDatasheet (PDF)

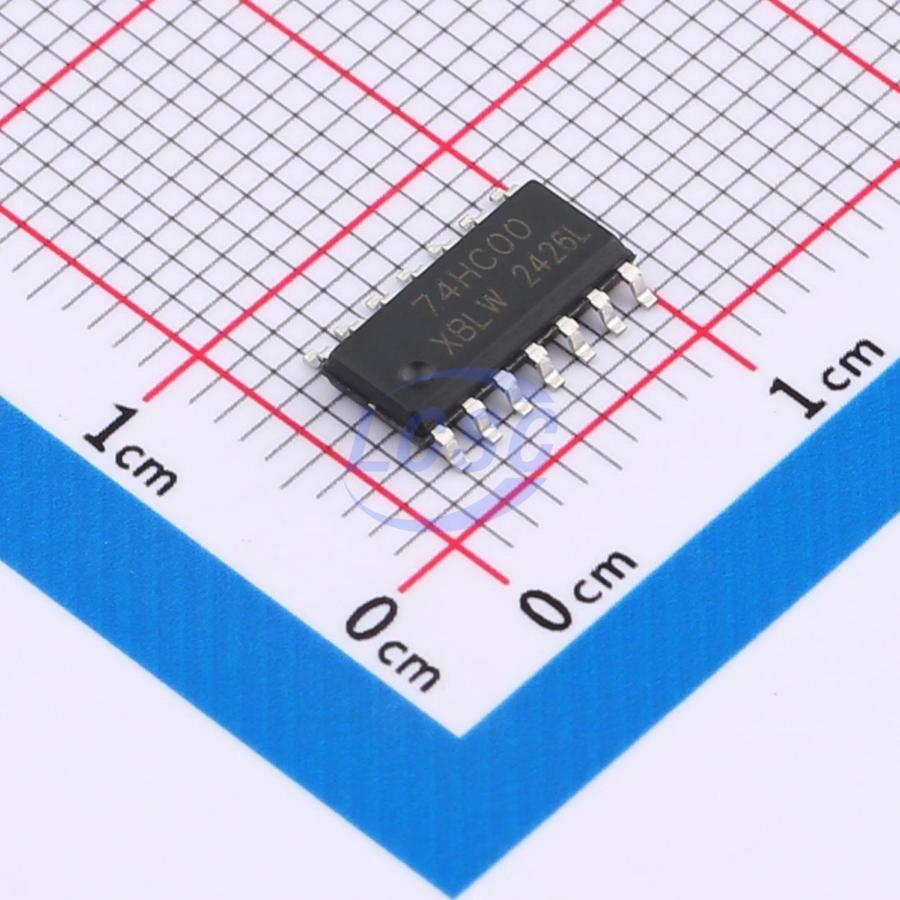

SN74HC00DTR(XBLW)
2uA 2V~6V 7ns@6V,15pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-input Nand Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC00DTR(XBLW)
- Store part #
- C41361404
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,590 in stock
#C41361404
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.14 | ₹65.70 |
| 50+ | ₹10.39 | ₹519.50 |
| 150+ | ₹9.01 | ₹1,351.50 |
| 500+ | ₹7.98 | ₹3,990.00 |
| 2,500+ | ₹7.16 | ₹17,900.00 |
| 5,000+ | ₹6.75 | ₹33,750.00 |
5 × ₹13.14
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC00DTR(XBLW)
₹65.70 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.2V;2.4V;3.2V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 7ns@6V,15pF
- Output Logic Level - Low
- 330mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Overview
The SN74HC00 is a quad 2- input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Alarm / tamper detect circuit
- S- R latch
Key features
- Wide operating voltage range: 2 V to 6 V
- Specified from -40℃ to +125℃
- Packaging information: DIP14/SOP14/TSSOP14
