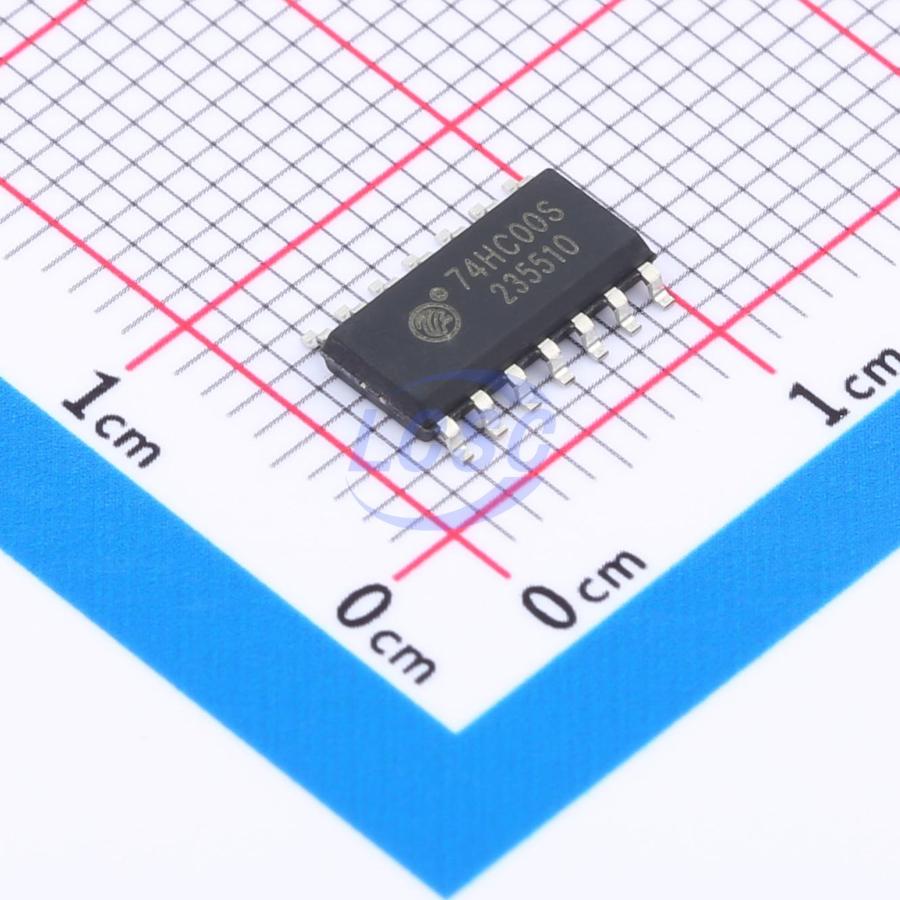

74HC00S
NAND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
NAND gate circuit
- Manufacturer
- GR
- Manufacturer part #
- 74HC00S
- Store part #
- C19818863
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C19818863
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.32 | ₹51.60 |
| 50+ | ₹8.16 | ₹408.00 |
| 150+ | ₹7.08 | ₹1,062.00 |
| 500+ | ₹6.27 | ₹3,135.00 |
| 2,500+ | ₹5.62 | ₹14,050.00 |
| 4,000+ | ₹5.29 | ₹21,160.00 |
5 × ₹10.32
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC00S
₹51.60 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V~5.9V
- Quiescent Current(Iq)
- 5.5uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The 74HC00 is a low-power 2-input NAND gate IC designed using advanced CMOS technology. It integrates four 2-input NAND gates, each featuring a buffered push-pull output for strong noise immunity and drive capability. Its logic function and standard pinout are compatible with the 54/74LS series logic gates.
Applications
- Digital logic driving, industrial control applications
Key features
- Low input current: ≤1μA
- Wide operating voltage range: 2.0V ~ 6.0V
- Low quiescent current: Icc≤5.5μA @ VCC = 6V, Ta = 25℃
- Package: DIP14, SOP14
