MDD(Microdiode Semiconductor)Datasheet (PDF)

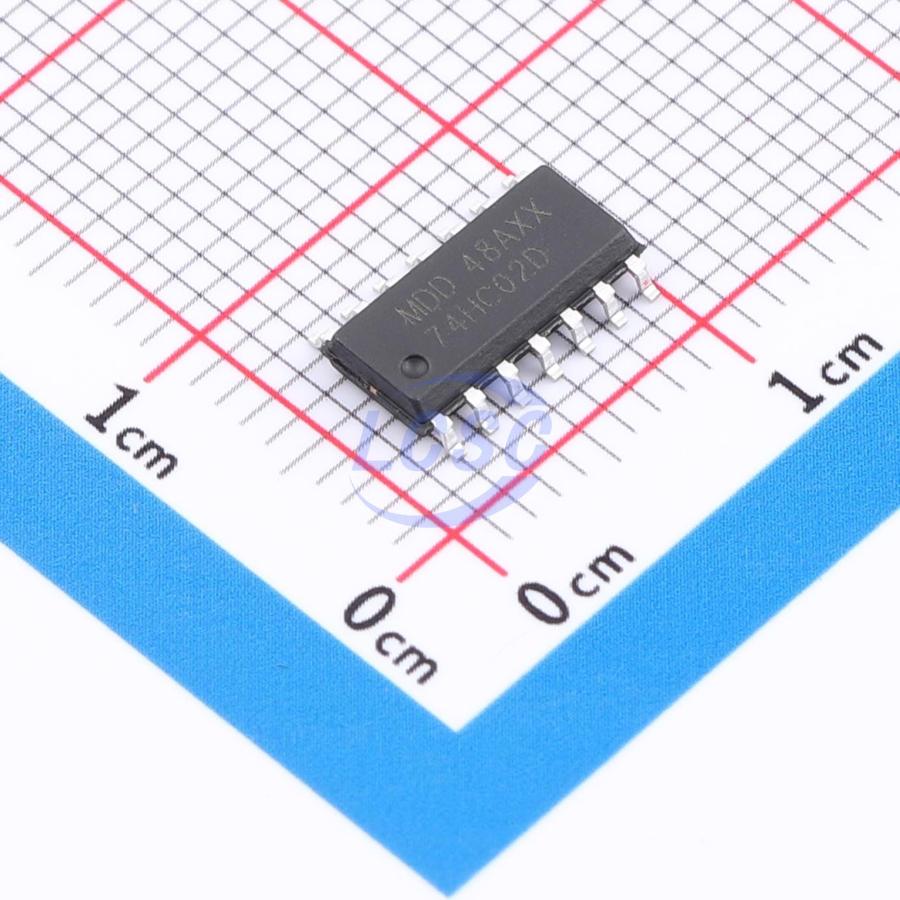

74HC02D
StandardCMOS 2V~6V 25ns@4.5V,15pF 40uA SOP-14L Gates and Inverters
SOP-14LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC02D
- Store part #
- C52140402
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,467 in stock
#C52140402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹18.57 | ₹18.57 |
| 10+ | ₹14.65 | ₹146.50 |
| 30+ | ₹12.67 | ₹380.10 |
| 100+ | ₹11.21 | ₹1,121.00 |
| 500+ | ₹10.03 | ₹5,015.00 |
| 1,000+ | ₹9.43 | ₹9,430.00 |
1 × ₹18.57
₹18.57
excl. GST
₹21.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC02D
₹18.57 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 25ns@4.5V,15pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.346 g
Overview
74HC02 and 74HCT02 are quad 2-input NOR gates. The inputs include clamping diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- JEDEC compliant: JESD8C (2.7V to 3.6V)
- JEDEC compliant: JESD7A (2.0V to 6.0V)
- For 74HC02: CMOS levels
- For 74HCT02: TTL levels
- HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
