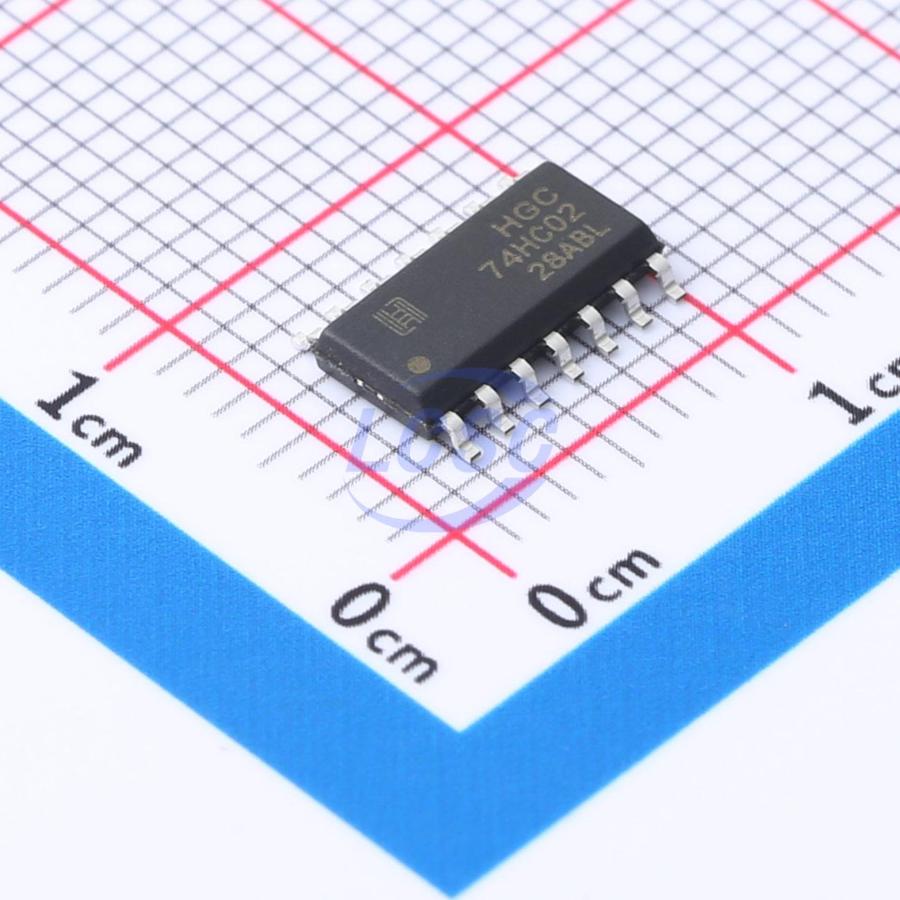

74HC02DRG
40uA 2V~6V 19ns@6V,50pF SOP-14L Gates and Inverters RoHS
SOP-14LROHS CompliantActive
Quad 2-Input NOR Gate
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74HC02DRG
- Store part #
- C5145448
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C5145448
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.27 | ₹513.50 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹7.92 | ₹3,960.00 |
| 2,500+ | ₹6.34 | ₹15,850.00 |
| 5,000+ | ₹5.93 | ₹29,650.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC02DRG
₹64.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;2.1V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;900mV;1.35V;1.8V
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;2.2V~2.48V;3.7V~3.98V;5.2V~5.48V
- Quiescent Current(Iq)
- 40uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 19ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
Key features
- Output drive capability: 10 LSTTL loads
- Outputs directly interface with CMOS, NMOS, and TTL
- Operating voltage range: 2.0V to 6.0V
- Low input current: 1.0μA
- High noise immunity characteristic of CMOS devices
- Compliant with JEDEC Standard No. 7A requirements
- ESD performance: HBM 2000V; Machine Model 200V
- Die complexity: 40 FETs or 10 equivalent gates
- Lead-free device
- Available in DIP-14, SOP-14, TSSOP-14 packages
