HGSEMIDatasheet (PDF)

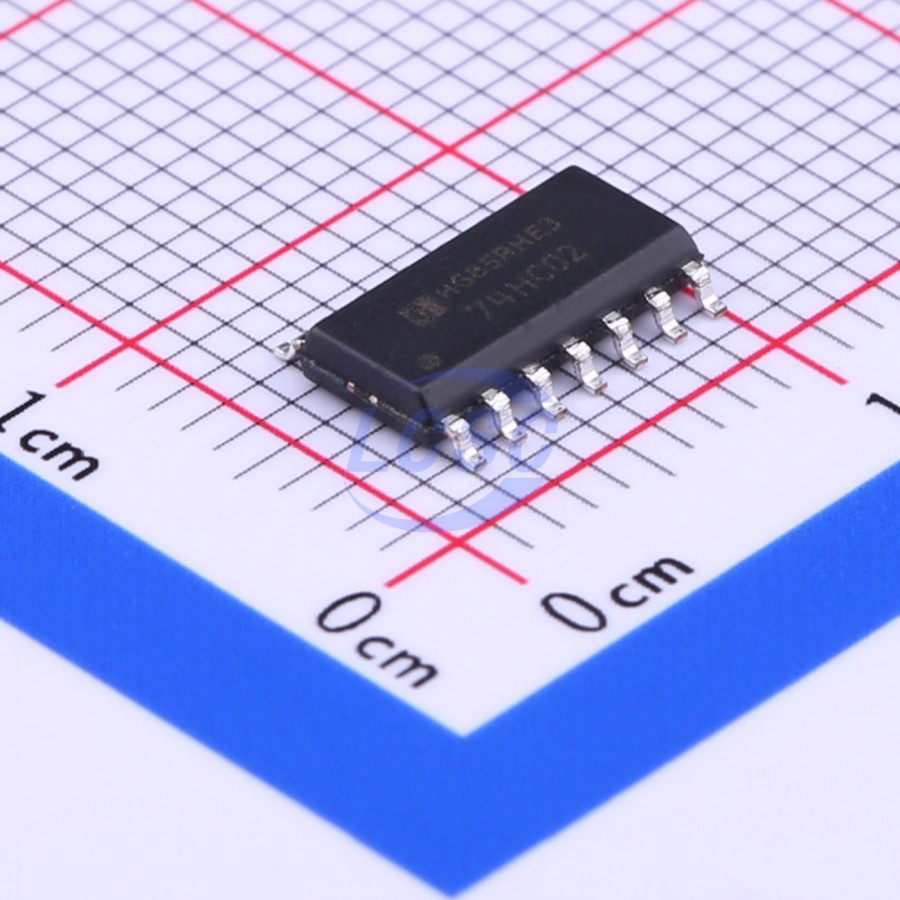

74HC02M/TR
IC Gate 4 Channel SOIC-14
SOIC-14RoHSActive
Quad 2-Input NOR Gate High-Performance Silicon-Gate CMOS
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC02M/TR
- Store part #
- C253895
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C253895
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.02 | ₹65.10 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.14 | ₹4,070.00 |
| 2,500+ | ₹7.36 | ₹18,400.00 |
| 5,000+ | ₹6.96 | ₹34,800.00 |
5 × ₹13.02
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC02M/TR
₹65.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 500mV;900mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;2.1V;3.15V;4.2V
- Logic Family
- 74HC Series
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 40uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 25mA
- Number of Channels
- 4;2
- Propagation Delay
- 16ns@6V,50pF
- Output Logic Level - Low
- 100mV
- Current - Output Low(IOL)
- 25mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.305 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HG74HC02M/TR#C52953101HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,475 | ₹11.07 · 2,475 in stock | View | |
