HGSEMIDatasheet (PDF)

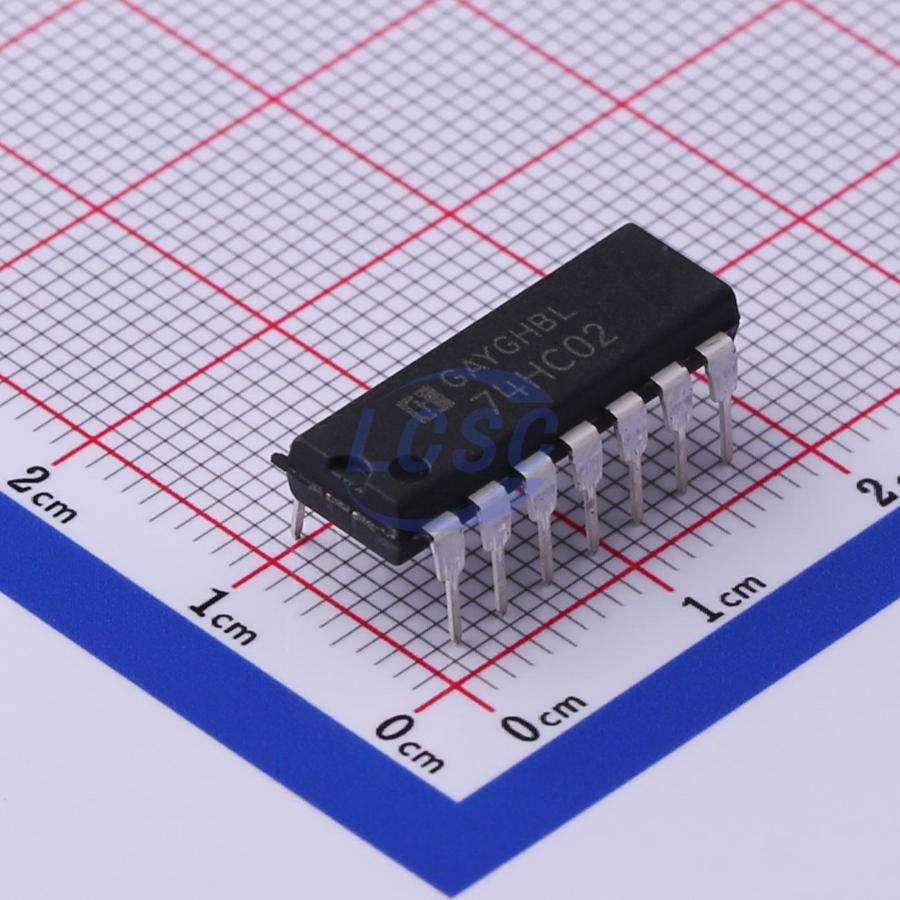

74HC02N
NOR Gate IC 4 Channel DIP-14
DIP-14RoHSActive
Quad 2-Input NOR Gate High-Performance Silicon-Gate CMOS
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC02N
- Store part #
- C507193
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C507193
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.44 | ₹92.20 |
| 50+ | ₹14.58 | ₹729.00 |
| 150+ | ₹12.65 | ₹1,897.50 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 2,000+ | ₹10.04 | ₹20,080.00 |
| 5,000+ | ₹9.46 | ₹47,300.00 |
5 × ₹18.44
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
74HC02N
₹92.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.8V
- Input Logic Level - High
- 2.1V~4.2V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 4.4V~5.9V
- Quiescent Current(Iq)
- 40uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 25mA
- Number of Channels
- 4;2
- Propagation Delay
- 13ns@4.5V,50pF
- Output Logic Level - Low
- 100mV
- Current - Output Low(IOL)
- 25mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.599 g
