HGSEMIDatasheet (PDF)

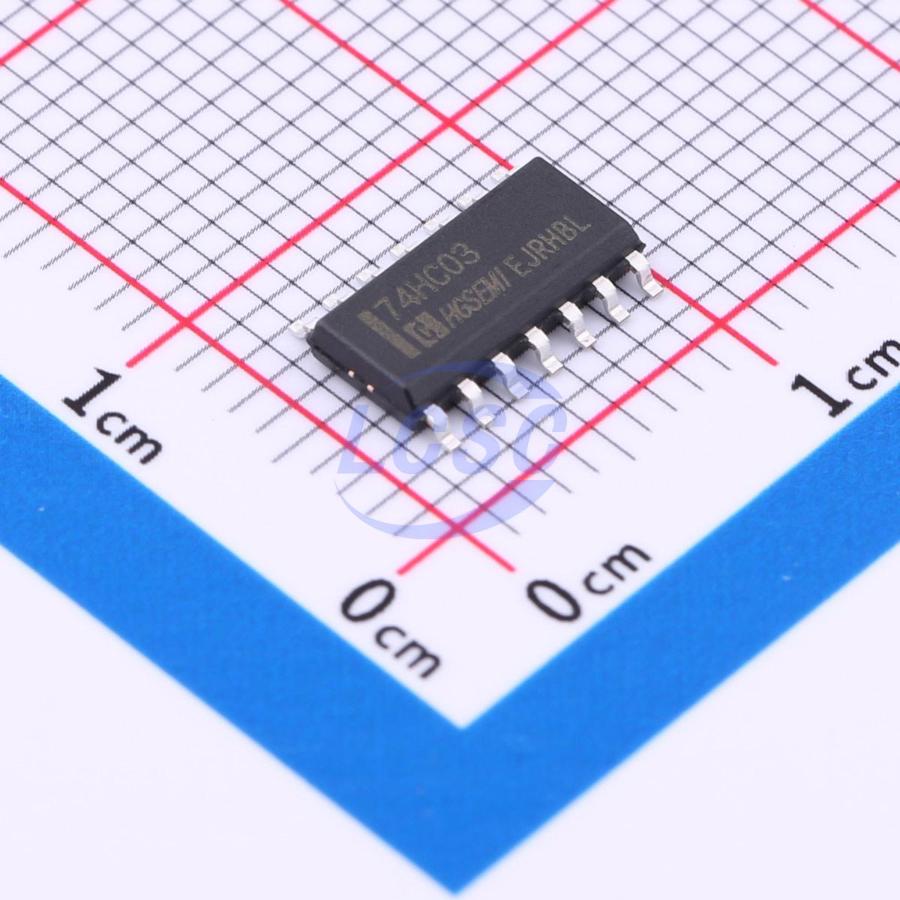

74HC03M/TR
StandardCMOS 2V~6V 8ns@5V,50pF 20uA SOP-14 Gates and Inverters
SOP-14RoHSActive
Quadruple 2-lnput NAND Gates with Open-Drain Outputs
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC03M/TR
- Store part #
- C3007962
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C3007962
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.40 | ₹102.00 |
| 50+ | ₹16.02 | ₹801.00 |
| 150+ | ₹14.14 | ₹2,121.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 2,500+ | ₹10.76 | ₹26,900.00 |
| 5,000+ | ₹10.13 | ₹50,650.00 |
5 × ₹20.40
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC03M/TR
₹102.00 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Open-drain
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 8ns@5V,50pF
- Output Logic Level - Low
- 100mV;330mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA;5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG74HC00M/TR#C19193513HGSEMI · SOP-14 | HGSEMI | SOP-14 | 17,795 | ₹9.96 · 17,795 in stock | View |
 | 74HC132M/TR#C507200HGSEMI · SOP-14 | HGSEMI | SOP-14 | 60 | ₹21.33 · 60 in stock | View |
