HXY MOSFETDatasheet (PDF)

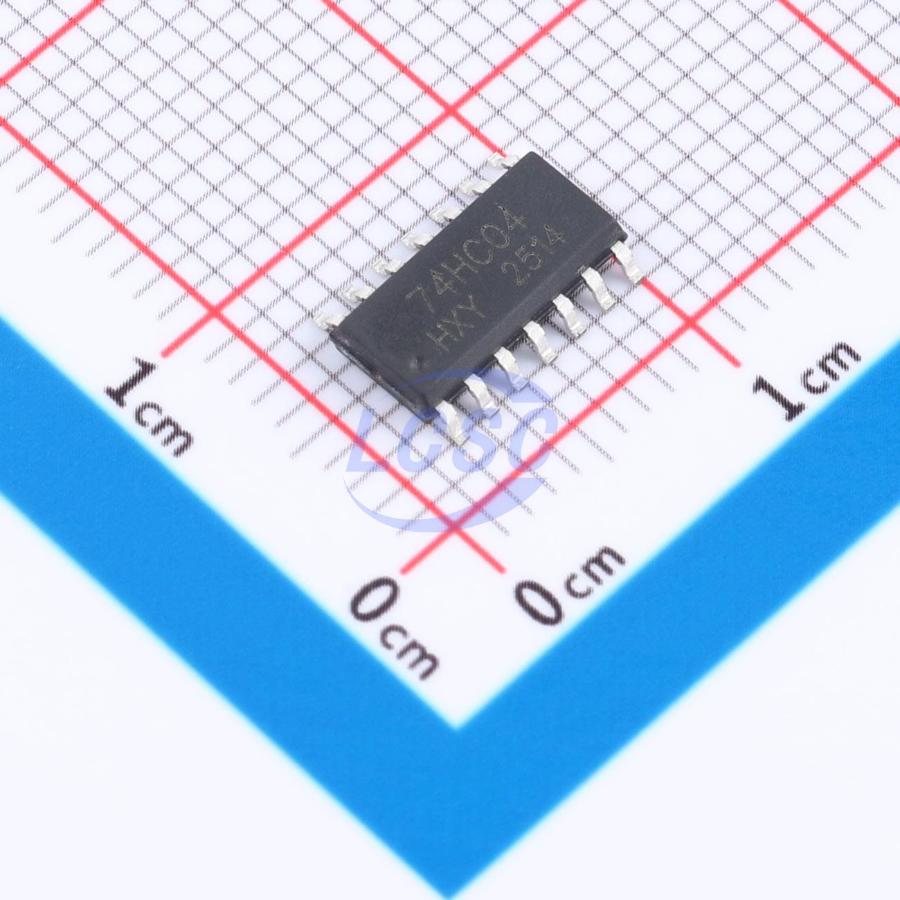

74HC04-HXY
StandardCMOS 2V~6V 7ns@6V,15pF 2uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Hex Inverter
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 74HC04-HXY
- Store part #
- C7427349
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C7427349
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.21 | ₹86.05 |
| 50+ | ₹13.77 | ₹688.50 |
| 150+ | ₹12.05 | ₹1,807.50 |
| 500+ | ₹10.77 | ₹5,385.00 |
| 2,500+ | ₹9.38 | ₹23,450.00 |
| 5,000+ | ₹8.86 | ₹44,300.00 |
5 × ₹17.21
₹86.05
excl. GST
₹101.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC04-HXY
₹86.05 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 7ns@6V,15pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 3.98V;4.32V;5.48V;5.81V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
74HC/HCT04 is a hex inverter. The inputs include clamping diodes, allowing the inputs to be connected to voltages exceeding VCC using current-limiting resistors.
Key features
- Input levels: CMOS for 74HC04; TTL for 74HCT04
- Operating temperature range: -40°C ~ +105°C
- Package options: DIP14, SOP14 (SOIC-14), TSSOP14
