74HC06NS14ARDQ
2V~6V 10uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive

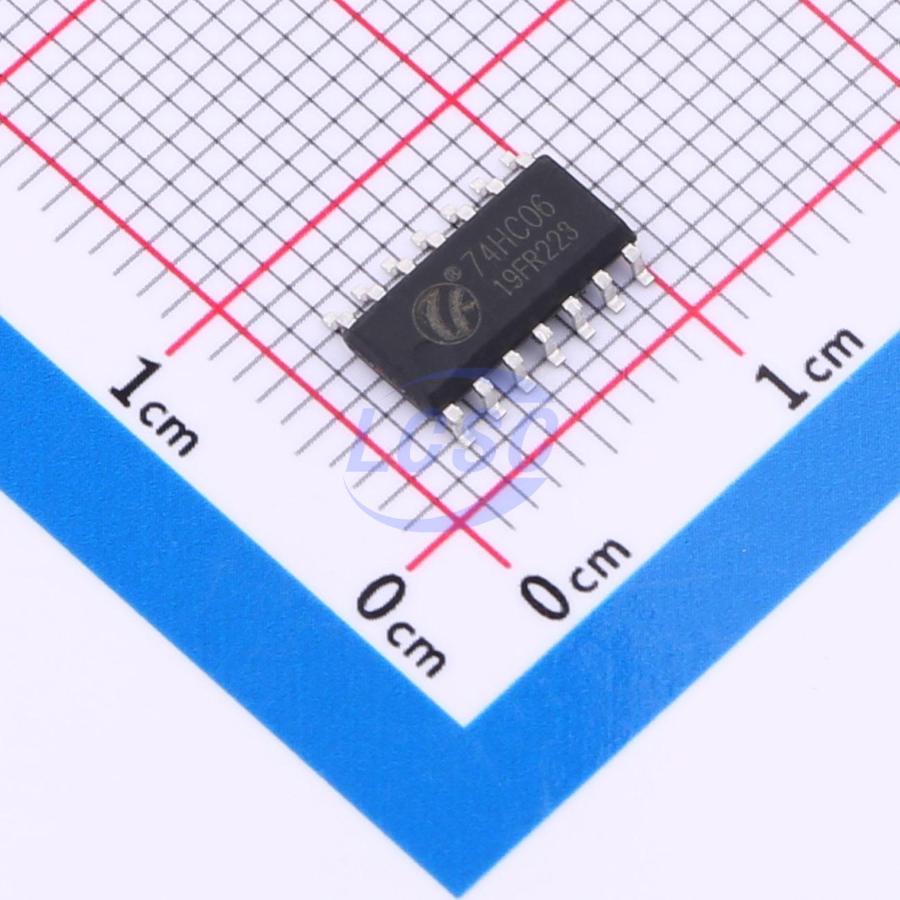

74HC06 Hex Inverter with Open-Drain Outputs
- Manufacturer
- GR
- Manufacturer part #
- 74HC06NS14ARDQ
- Store part #
- C42394258
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,235 in stock
#C42394258
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.21 | ₹136.05 |
| 50+ | ₹21.75 | ₹1,087.50 |
| 150+ | ₹19.42 | ₹2,913.00 |
| 500+ | ₹16.50 | ₹8,250.00 |
| 2,500+ | ₹15.20 | ₹38,000.00 |
| 4,000+ | ₹14.42 | ₹57,680.00 |
5 × ₹27.21
₹136.05
excl. GST
₹160.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC06NS14ARDQ
₹136.05 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~1.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
This device contains six open drain output inverters,This device can be used in wired-AND, LED driver and other applications with a suitable pull-up resistors.
Key features
- Low input current IN = 1 μA (MAX) @ TA = 25℃
- WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2 V to 6 V
