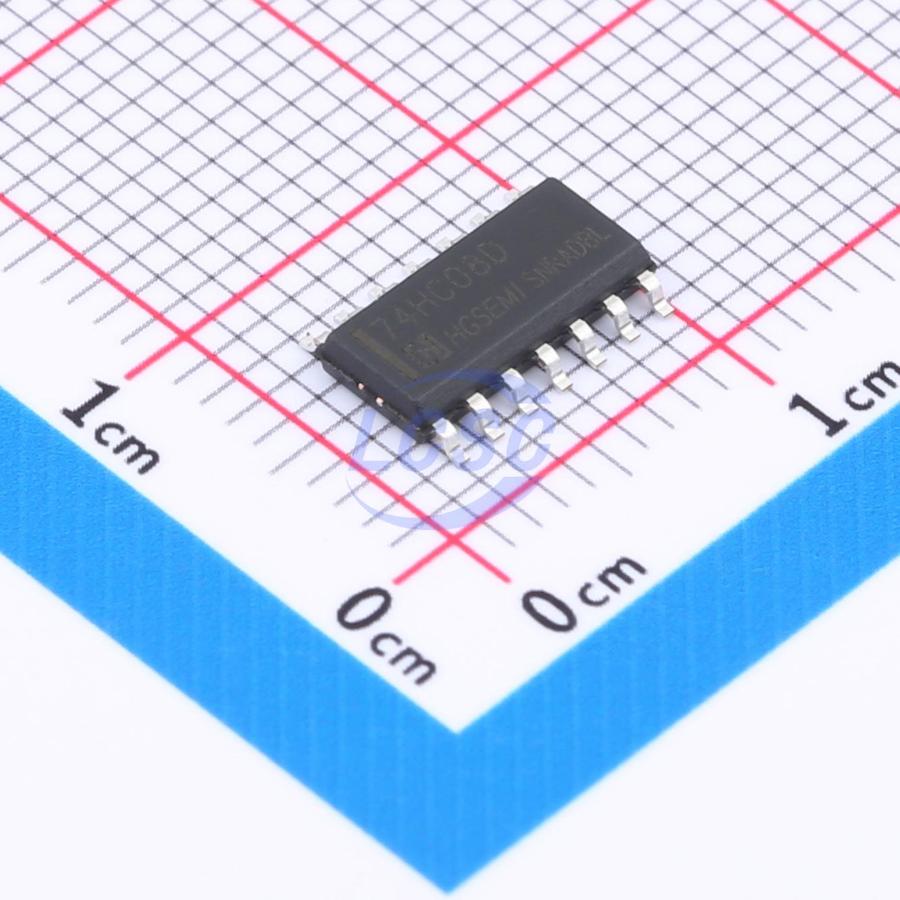

74HC08DM/TR
AND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
Low-power 2-input AND gate integrated circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC08DM/TR
- Store part #
- C19193441
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C19193441
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.73 | ₹63.65 |
| 50+ | ₹10.12 | ₹506.00 |
| 150+ | ₹8.82 | ₹1,323.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 2,500+ | ₹7.45 | ₹18,625.00 |
| 5,000+ | ₹7.05 | ₹35,250.00 |
5 × ₹12.73
₹63.65
excl. GST
₹75.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC08DM/TR
₹63.65 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 16ns@5V,15pF;18ns@5V,15pF
- Output Logic Level - Low
- 100mV;400mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V~4.4V;5.2V~5.8V
- Quiescent Current(Iq)
- 5.5uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3.282 g
Overview
Applications
- Digital logic drive
- Industrial control applications (e.g., quiz buzzers, programmable equipment)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HG74HC08M/TR#C53155523HGSEMI · SOP-14 | HGSEMI | SOP-14 | 1,830 | ₹11.15 · 1,830 in stock | View | |
