MDD(Microdiode Semiconductor)Datasheet (PDF)

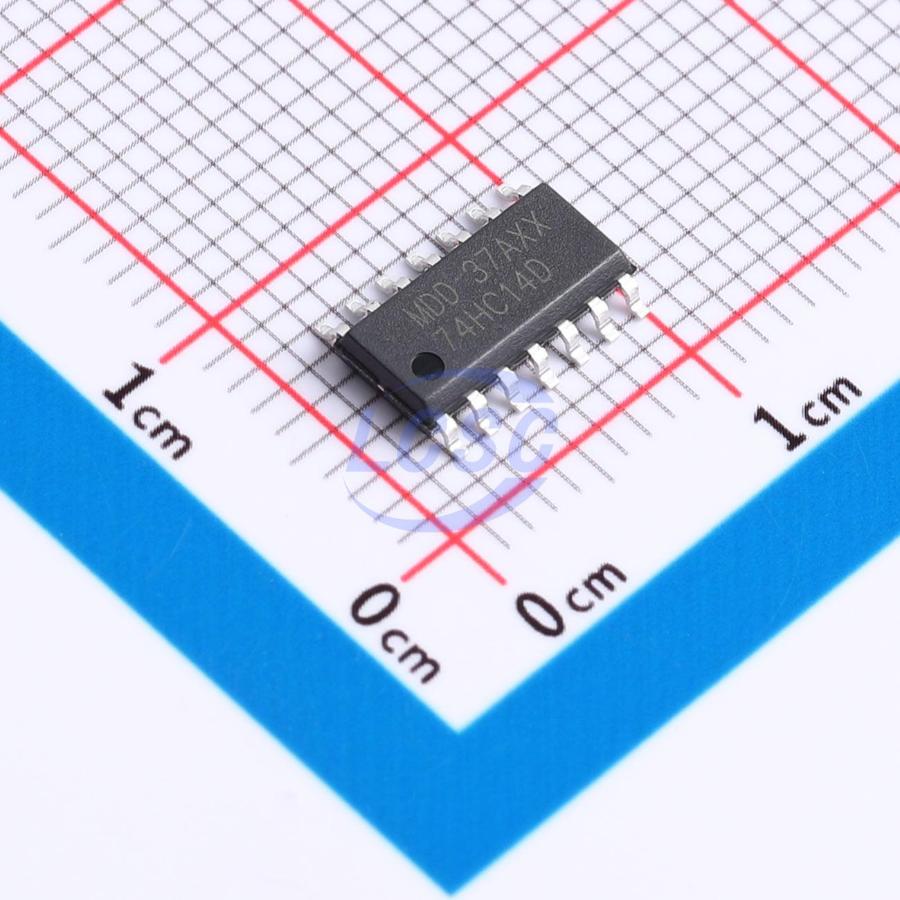

74HC14D
Schmitt trigger 2V~6V 15ns 40uA 6 SOP-14L Gates and Inverters
SOP-14LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC14D
- Store part #
- C52140397
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,780 in stock
#C52140397
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.57 | ₹92.85 |
| 50+ | ₹14.65 | ₹732.50 |
| 150+ | ₹12.67 | ₹1,900.50 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 2,500+ | ₹10.03 | ₹25,075.00 |
| 5,000+ | ₹9.43 | ₹47,150.00 |
5 × ₹18.57
₹92.85
excl. GST
₹109.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC14D
₹92.85 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 15ns
- Features
- Noise suppression function
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V;5.2V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.409 g
Overview
74HC14 and 74HCT14 are hex inverters with Schmitt-trigger inputs. These devices feature reduced input threshold levels for interfacing with TTL logic levels. The Schmitt-trigger inputs convert slowly changing input signals into clean, bounce-free output signals.
Key features
- Wide supply voltage range: 2.0V ~ 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Unlimited rise and fall times
- JEDEC compliant: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
