lingxingic

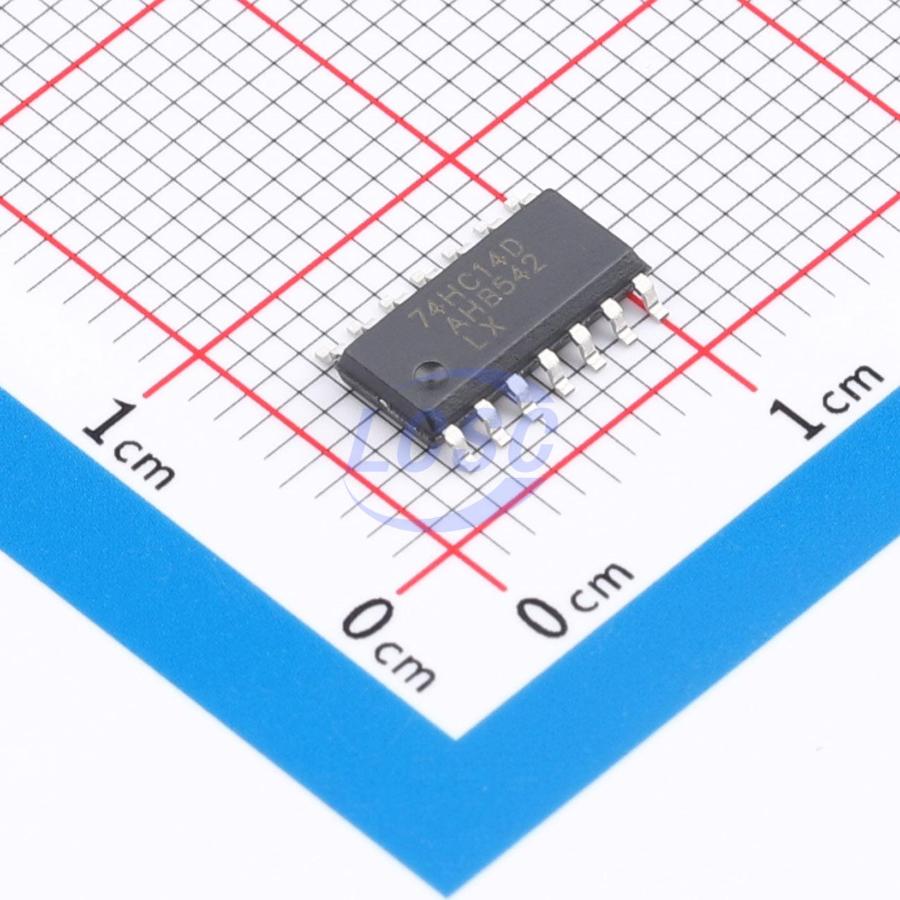

74HC14D(LX)

Schmitt trigger 2V~6V 125ns 40uA 6 SOP-14 Gates and Inverters

SOP-14RoHSActive

Manufacturer: lingxingic
Manufacturer part #: 74HC14D(LX)
Store part #: C52711169
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,145 in stock

#C52711169

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.08	₹60.40
50+	₹9.63	₹481.50
150+	₹8.40	₹1,260.00
500+	₹7.47	₹3,735.00
2,500+	₹6.73	₹16,825.00
4,000+	₹6.36	₹25,440.00

Quantity (min 5, multiples of 5)

5 × ₹12.08

₹60.40

excl. GST

₹71.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

74HC14D(LX)

₹60.40 for 5 + GST

Specifications

Logic Family: 74HC
Input Type: Schmitt trigger
Voltage - Supply: 2V~6V
Output Logic Level - Low: 100mV;260mV
Propagation Delay: 125ns
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;4.4V;5.9V;3.98V;5.48V
Quiescent Current(Iq): 40uA
Number of Channels: 6

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.13 g

Overview

The 74HC/HCT14 is a hex inverter with Schmitt-trigger inputs. The 74HCT14 variant features lower input threshold levels for TTL logic level compatibility. The Schmitt-trigger converts slowly changing input signals into output signals with sharper, more stable edges.
