HGSEMIDatasheet (PDF)

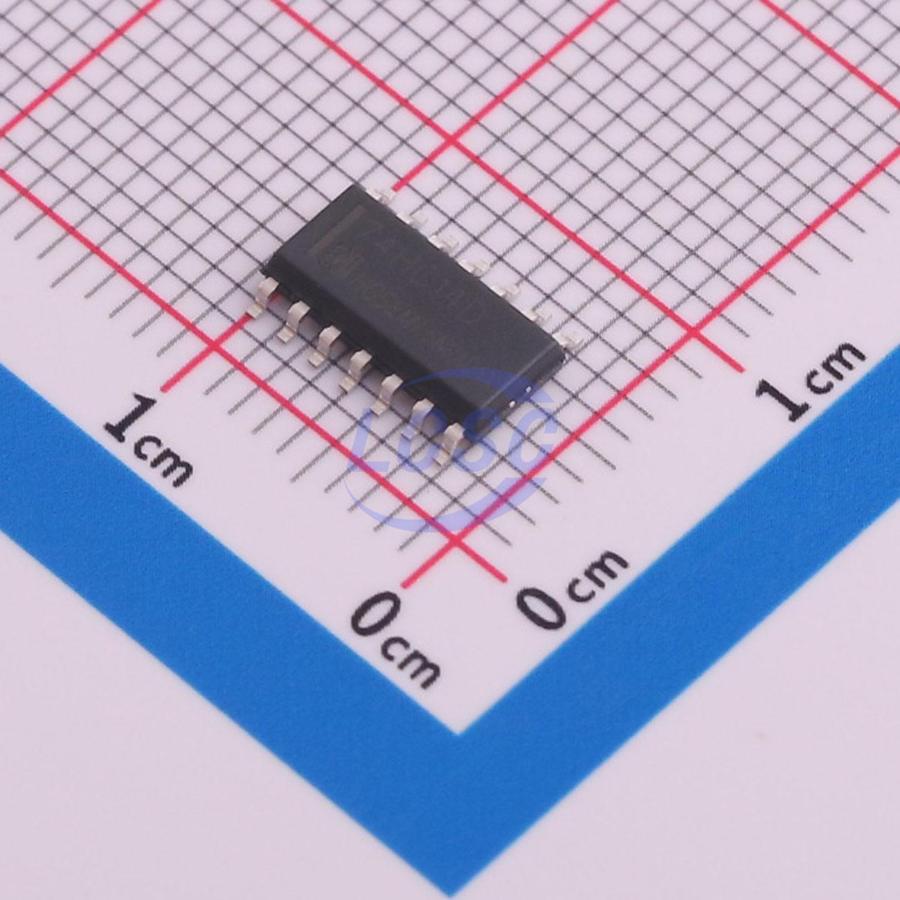

74HC14DM/TR
Schmitt trigger 2V~6V 30ns@5V,47pF 20uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Low-power logic gate integrated circuits
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC14DM/TR
- Store part #
- C7432325
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C7432325
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.14 | ₹65.70 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.22 | ₹1,383.00 |
| 500+ | ₹8.24 | ₹4,120.00 |
| 2,500+ | ₹7.46 | ₹18,650.00 |
| 5,000+ | ₹7.06 | ₹35,300.00 |
5 × ₹13.14
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC14DM/TR
₹65.70 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 30ns@5V,47pF
- Output Logic Level - Low
- 100mV;250mV
- Features
- Noise suppression function
- Operating Temperature
- 0℃~+60℃
- Output Logic Level - High
- 1.9V;4.3V;5.8V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.31 g
Overview
Applications
- Synchronous inverting clock input
- Industrial control applications (e.g., quiz buzzers, programmable equipment)
- Switch debouncing
- Digital signal inversion
- Digital logic driving
- Other application areas
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC14M/TR#C507199HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,265 | ₹20.41 · 2,265 in stock | View |
