NexperiaDatasheet (PDF)

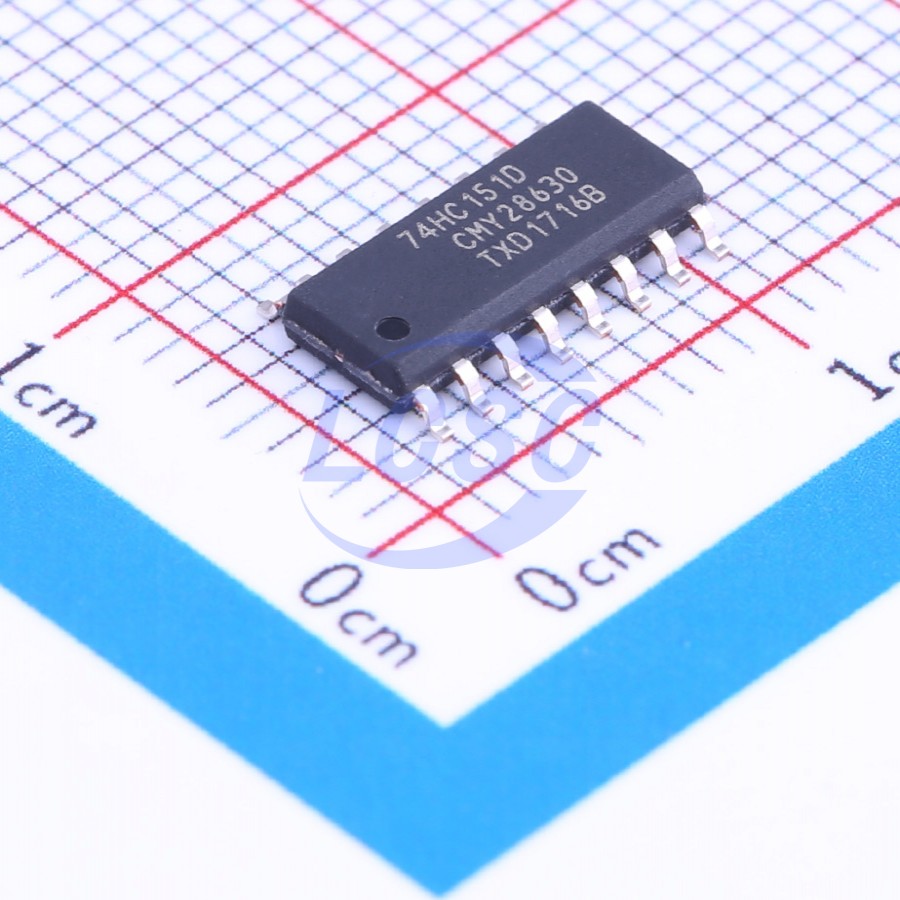

74HC151D,653
8/1 2V~6V 8uA 19ns@4.5V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
8-input multiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC151D,653
- Store part #
- C131692
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,330 in stock
#C131692
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.57 | ₹197.85 |
| 50+ | ₹31.16 | ₹1,558.00 |
| 150+ | ₹27.56 | ₹4,134.00 |
| 500+ | ₹23.06 | ₹11,530.00 |
| 2,500+ | ₹21.05 | ₹52,625.00 |
| 5,000+ | ₹19.86 | ₹99,300.00 |
5 × ₹39.57
₹197.85
excl. GST
₹233.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC151D,653
₹197.85 for 5 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/1
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 8uA
- Current - Output High(IOH)
- 5.2mA
- Propagation Delay
- 19ns@4.5V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
The 74HC151; 74HCT151 is an 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels: For 74HC151: CMOS level; For 74HCT151: TTL level
- Non-inverting data path
- Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M74HC151YRM13TR#C2674734ST · SO-16 | ST | SO-16 | 2,044 | ₹59.28 · 2,044 in stock | View |
 | 74HC151D#C2674446TOSHIBA · SOIC-16 | TOSHIBA | SOIC-16 | 311 | ₹60.04 · 311 in stock | View |
 | CD74HC151M96#C180080TI · SOIC-16 | TI | SOIC-16 | 1,051 | ₹29.27 · 1,051 in stock | View |
 | MC74HC151ADR2G#C233602onsemi · SOIC-16 | onsemi | SOIC-16 | 3 | ₹57.63 · 3 in stock | View |
| CD74HC251M96#C2674725TI · SOIC-16 | TI | SOIC-16 | 5 | ₹80.45 · 5 in stock | View | |
