CD74HC151M96
8/1 2V~6V 160uA 29ns@6V,50pF Reverse function SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive

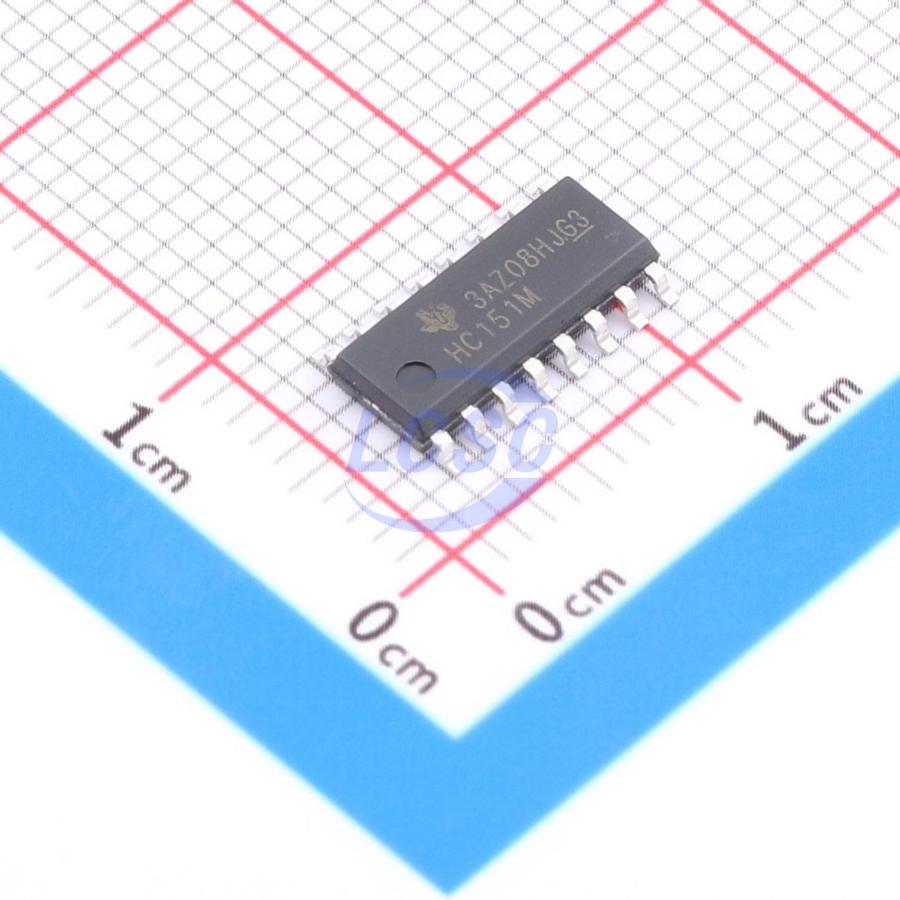

High-speed CMOS Logic 8-Input Multiplexer
- Manufacturer
- TI
- Manufacturer part #
- CD74HC151M96
- Store part #
- C180080
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,051 in stock
#C180080
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.21 | ₹35.21 |
| 10+ | ₹30.46 | ₹304.60 |
| 30+ | ₹28.51 | ₹855.30 |
| 100+ | ₹25.92 | ₹2,592.00 |
| 500+ | ₹24.85 | ₹12,425.00 |
| 1,000+ | ₹24.20 | ₹24,200.00 |
1 × ₹35.21
₹35.21
excl. GST
₹41.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC151M96
₹35.21 for 1 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/1
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -55℃~+125℃
- Quiescent Current
- 160uA
- Current - Output High(IOH)
- 5.2mA
- Propagation Delay
- 29ns@6V,50pF
- Function
- Reverse function
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.492 g
Overview
'HC151 and 'HCT151 are single 8-channel digital multiplexers with three binary control inputs A, B, C and an active-LOW enable (G̅) input. The three binary signals select 1 of 8 channels. Outputs are available in both inverted (W) and non-inverted (Y) forms.
Key features
- Wide operating temperature range: -55℃ to 125℃
- Balanced propagation delay and transition time
- Significantly lower power consumption compared to LSTTL logic ICs
- HC type operating voltage: 2 V to 6 V
- High noise immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5 V
- HCT type operating voltage: 4.5 V to 5.5 V
- Direct LSTTL input logic compatibility: VIL = 0.8 V (max), VIH = 2 V (min)
- CMOS input compatibility at VOL, VOH voltages: |Il| ≤ 1 μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CD74HC251M96#C2674725TI · SOIC-16 | TI | SOIC-16 | 5 | ₹96.76 · 5 in stock | View | |
 | 74HC151M/TR#C22461606HGSEMI · SOP-16 | HGSEMI | SOP-16 | 2,215 | ₹20.51 · 2,215 in stock | View |
 | MC74HC151ADR2G#C233602onsemi · SOIC-16 | onsemi | SOIC-16 | 3 | ₹69.31 · 3 in stock | View |
 | 74HC151D,653#C131692Nexperia · SOIC-16 | Nexperia | SOIC-16 | 3,330 | ₹47.59 · 3,330 in stock | View |
 | 74HC151D#C2674446TOSHIBA · SOIC-16 | TOSHIBA | SOIC-16 | 311 | ₹72.21 · 311 in stock | View |
