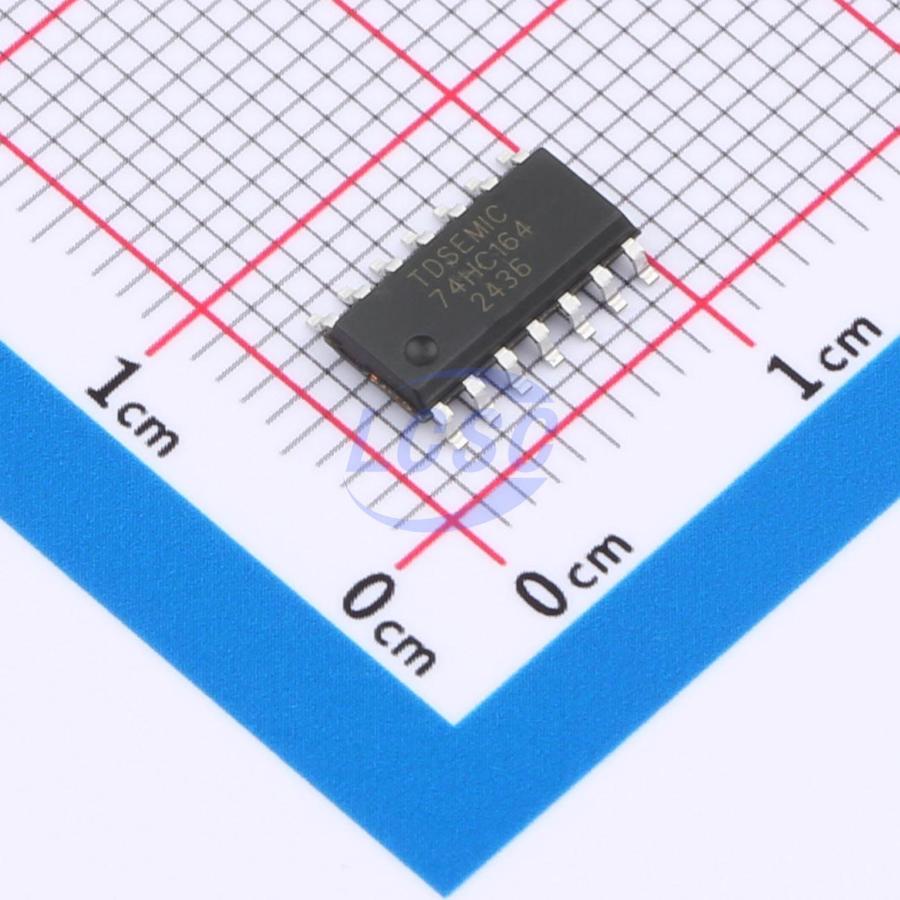

74HC164-TD
2V~6V 1 25mA 24ns@5V,16pF Serial-to-Parallel SOP-14 Shift Registers RoHS
SOP-14ROHS CompliantActive
8-bit register with two-wire input
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74HC164-TD
- Store part #
- C42421775
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C42421775
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 2,500+ | ₹5.27 | ₹13,175.00 |
| 5,000+ | ₹4.72 | ₹23,600.00 |
| 10,000+ | ₹4.45 | ₹44,500.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC164-TD
₹86.70 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous clear function
- Propagation Delay
- 24ns@5V,16pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.234 g
Overview
The 74HC164 is an 8-bit shift register with two-line input, designed using high-speed CMOS process technology. The register is constructed from master-slave D-type flip-flops, offering high noise immunity and interference rejection. On the rising edge of CLOCK, the 8-bit binary data (Qa~Qg) shifts one bit to the right. A dedicated clear input allows easy reset of the output data. This shift register also supports multi-stage cascading for expanded output as needed.
Applications
- 8-bit decoder or expansion
- Automated engineering control
