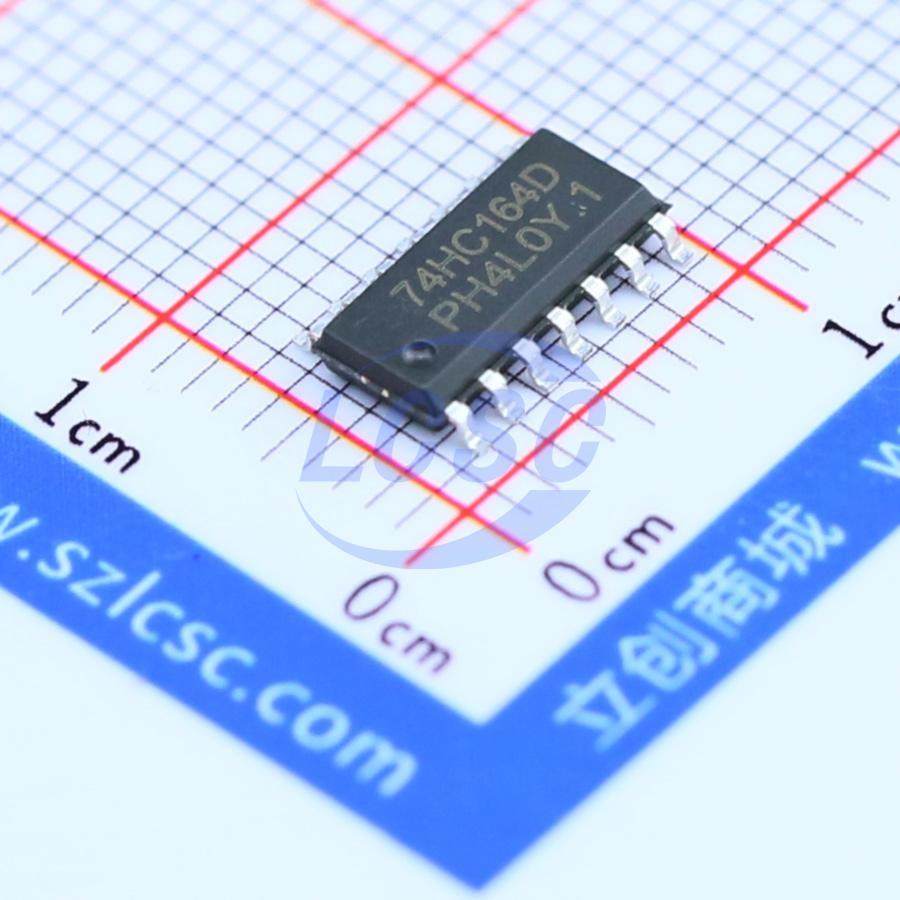

74HC164D

2V~6V 38ns@6V,50pF Serial-to-Parallel SOP-14 Shift Registers RoHS

SOP-14ROHS CompliantActive

8-bit serial-in parallel-out shift register

Manufacturer: FM
Manufacturer part #: 74HC164D
Store part #: C86610
Package / case: SOP-14
Category: Shift Registers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

91,075 in stock

#C86610

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹14.05	₹70.25
50+	₹11.39	₹569.50
150+	₹10.05	₹1,507.50
500+	₹9.06	₹4,530.00
2,500+	₹8.26	₹20,650.00
4,000+	₹7.34	₹29,360.00

Quantity (min 5, multiples of 5)

5 × ₹14.05

₹70.25

excl. GST

₹82.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

74HC164D

₹70.25 for 5 + GST

Specifications

Operating temperature: -40℃~+85℃
Voltage - Supply: 2V~6V
Series: 74HC
Features: Asynchronous clear function
Propagation Delay: 38ns@6V,50pF
Function: Serial-to-Parallel

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.231 g

Overview

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum setup time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
