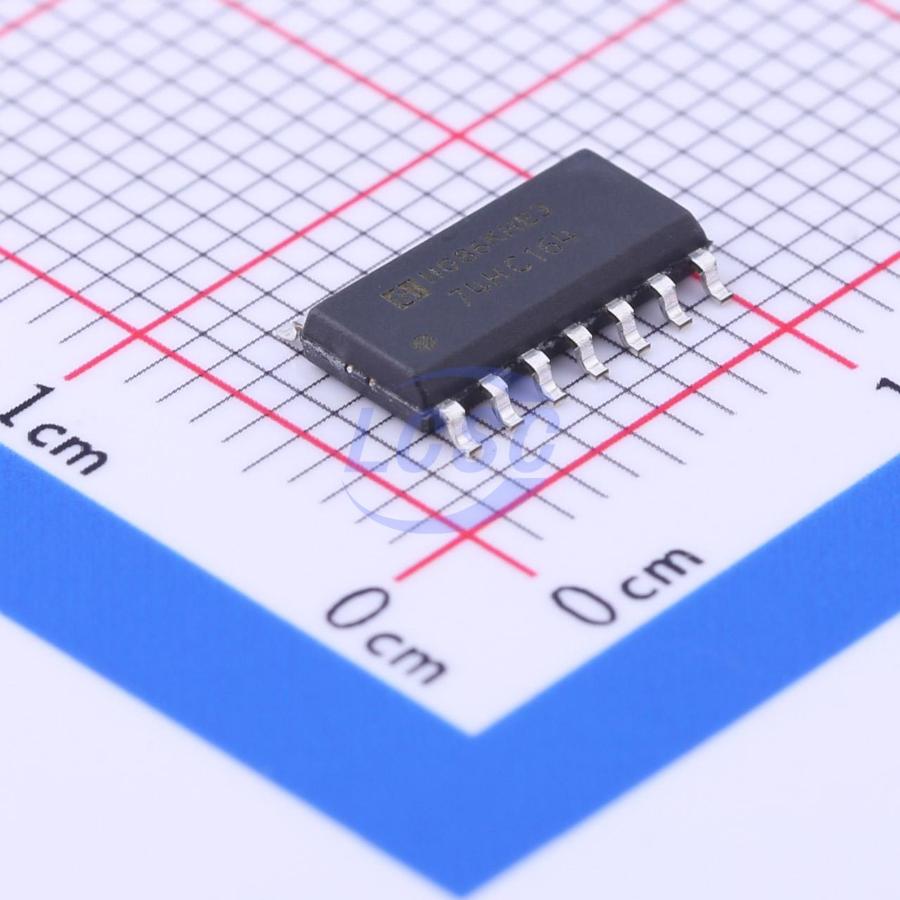

74HC164M/TR
2V~6V 25mA 24ns@5V,16pF Serial-to-Parallel SOIC-14 Shift Registers
SOIC-14RoHSActive
8-bit binary shift register
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC164M/TR
- Store part #
- C194287
- Package / case
- SOIC-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C194287
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.24 | ₹512.00 |
| 150+ | ₹8.89 | ₹1,333.50 |
| 500+ | ₹7.87 | ₹3,935.00 |
| 2,500+ | ₹7.05 | ₹17,625.00 |
| 5,000+ | ₹6.64 | ₹33,200.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC164M/TR
₹64.75 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Series
- 74HC Series
- Output Current
- 25mA
- Features
- Asynchronous clear function
- Propagation Delay
- 24ns@5V,16pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.397 g
Overview
The 74HC164 is an 8-bit shift register with two-line input, designed using high-speed CMOS process technology. The register is built with master-slave D-type flip-flops, offering high noise immunity and interference resistance. On the rising edge of the CLOCK signal, the 8-bit binary data (Qa~Qg) shifts one position to the right. A dedicated clear input allows easy reset of the output data. This shift register also supports multi-stage cascading for expanded output as needed.
Applications
- 8-bit decoder or expansion
- Automated engineering control
- Other application areas
Key features
- Low input current: ≤1μA
- Low quiescent current: Icc≤5.0μA @ VCC = 6V
- Wide operating voltage range: 2.0V ~ 6.0V
- Propagation delay time: typical 20ns
- Compound enable inputs for easy multi-stage expansion
- Package types: DIP-14, SOP-14, TSSOP-14, QFN-16
