NexperiaDatasheet (PDF)

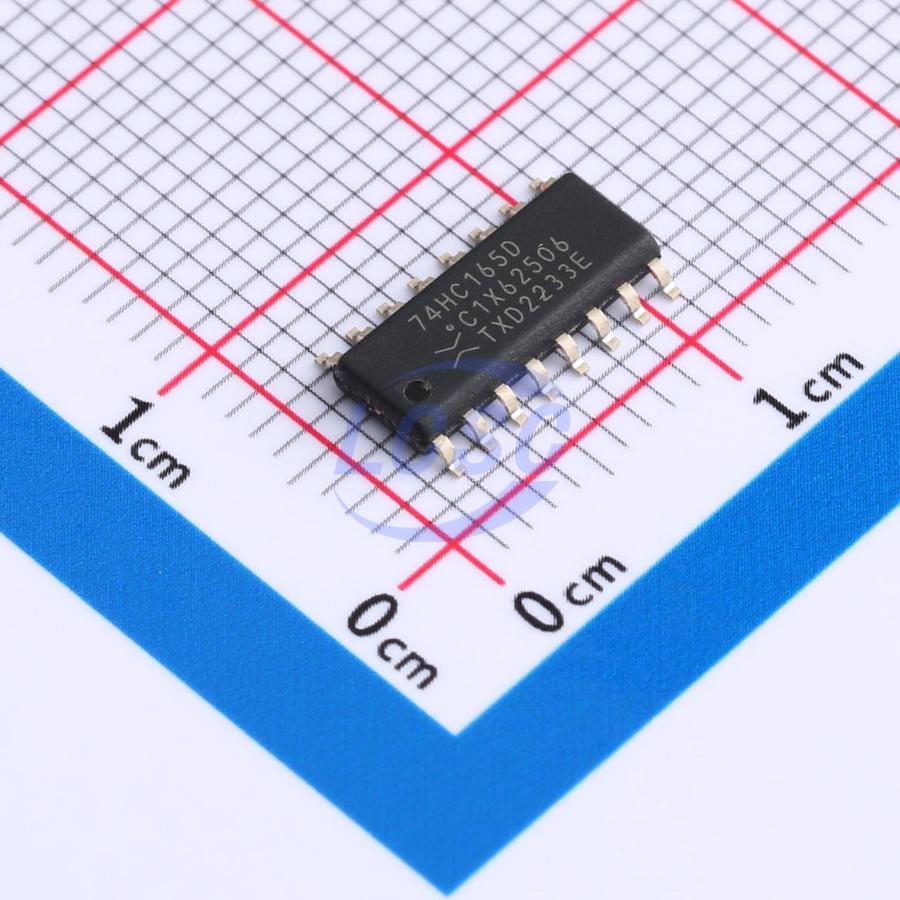

74HC165D-Q100,118
2V~6V 1 25mA 28ns@6V,50pF Parallel or Serial to Serial SO-16 Shift Registers RoHS
SO-16ROHS3 CompliantActive
8-bit parallel-in/serial out shift register
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC165D-Q100,118
- Store part #
- C546641
- Package / case
- SO-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C546641
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.14 | ₹165.70 |
| 50+ | ₹26.25 | ₹1,312.50 |
| 150+ | ₹23.28 | ₹3,492.00 |
| 500+ | ₹18.79 | ₹9,395.00 |
| 2,500+ | ₹17.15 | ₹42,875.00 |
| 5,000+ | ₹16.15 | ₹80,750.00 |
5 × ₹33.14
₹165.70
excl. GST
₹195.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC165D-Q100,118
₹165.70 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 28ns@6V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
Applications
- Parallel-to-serial data conversion
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
- Asynchronous 8-bit parallel load
- Synchronous serial input
- Complies with JEDEC standard no. 7A
- Input levels:
- For 74HC165-Q100: CMOS level
- For 74HCT165-Q100: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- DHVQFN package with Side-Wettable Flanks enabling Automatic Optical Inspection (AOI) of solder joints
