MDD(Microdiode Semiconductor)Datasheet (PDF)

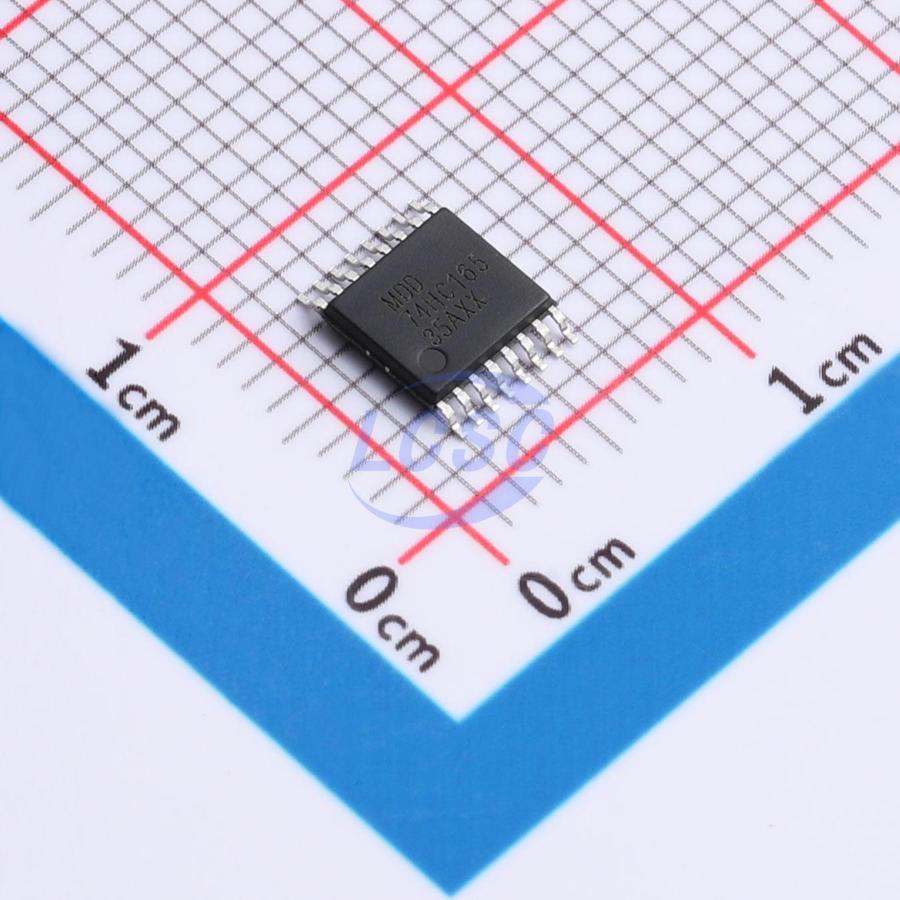

74HC165PW
2V~6V 1 25mA 10.4ns@6V,50pF Parallel or Serial to Serial TSSOP-16L Shift Registers
TSSOP-16LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC165PW
- Store part #
- C52140500
- Package / case
- TSSOP-16L
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,729 in stock
#C52140500
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹27.31 | ₹27.31 |
| 10+ | ₹21.41 | ₹214.10 |
| 30+ | ₹18.88 | ₹566.40 |
| 100+ | ₹15.72 | ₹1,572.00 |
| 500+ | ₹14.31 | ₹7,155.00 |
| 1,000+ | ₹13.47 | ₹13,470.00 |
1 × ₹27.31
₹27.31
excl. GST
₹32.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC165PW
₹27.31 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 10.4ns@6V,50pF
- Features
- Asynchronous parallel load function
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The 74HC165 is an 8-bit serial or parallel-in/serial-out shift register. The device features a serial data input (DS), eight parallel data inputs (D0 to D7), and two complementary serial outputs (Q7 and Q̄7). When the parallel load input (P̄L̄) is LOW, data is asynchronously loaded into the shift register from D0 to D7. When P̄L̄ is HIGH, data enters the register serially via DS. When the clock enable input (C̄Ē) is LOW, data is shifted on the LOW-to-HIGH transition of the CP input. A HIGH on C̄Ē disables the CP input. Clamping diodes on the inputs allow input interfacing to voltages above VCC using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Asynchronous 8-bit parallel load
- Synchronous serial input
- Latch-up performance exceeds 250 mA
- JEDEC compliant: JESD8C (2.7V to 3.6V), JESD7A (2.0V to 6.0V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
- Operating temperature range: -40°C to +85°C and -40°C to +125°C
