NexperiaDatasheet (PDF)

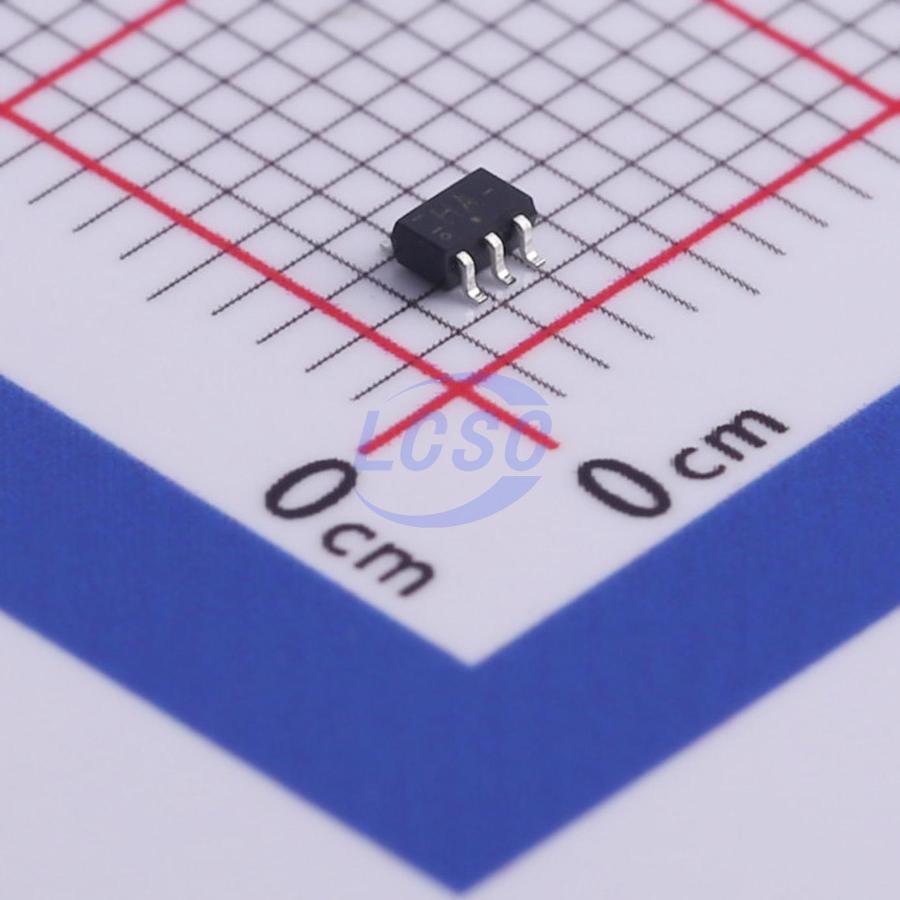

74HC1G00GW,125
StandardCMOS 2V~6V 23ns@6V,50pF 20uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
2-input NAND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC1G00GW,125
- Store part #
- C455034
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,315 in stock
#C455034
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.71 | ₹63.55 |
| 50+ | ₹10.03 | ₹501.50 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.67 | ₹3,835.00 |
| 3,000+ | ₹6.87 | ₹20,610.00 |
| 6,000+ | ₹6.46 | ₹38,760.00 |
5 × ₹12.71
₹63.55
excl. GST
₹74.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G00GW,125
₹63.55 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 23ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The 74HC1G00; 74HCT1G00 is a single 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- Input levels: For 74HC1G00: CMOS level For 74HCT1G00: TTL level
- Symmetrical output impedance
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD78 Class II Level B
- Balanced propagation delays
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC74HC1G00DFT2G#C891432onsemi · SC-88A-5 | onsemi | SC-88A-5 | 55 | ₹10.86 · 55 in stock | View | |
 | MC74HC1G00DFT1G-TP#C52205115TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 14,410 | ₹5.74 · 14,410 in stock | View |
 | 74HC1G00GW#C52205091TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,500 | ₹6.23 · 2,500 in stock | View |
 | MC74HC1G00DTT1G-TP#C52205116TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,820 | ₹5.72 · 2,820 in stock | View |
 | 74AHC1G00GW,125#C406041Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 635 | ₹10.17 · 635 in stock | View |
