NexperiaDatasheet (PDF)

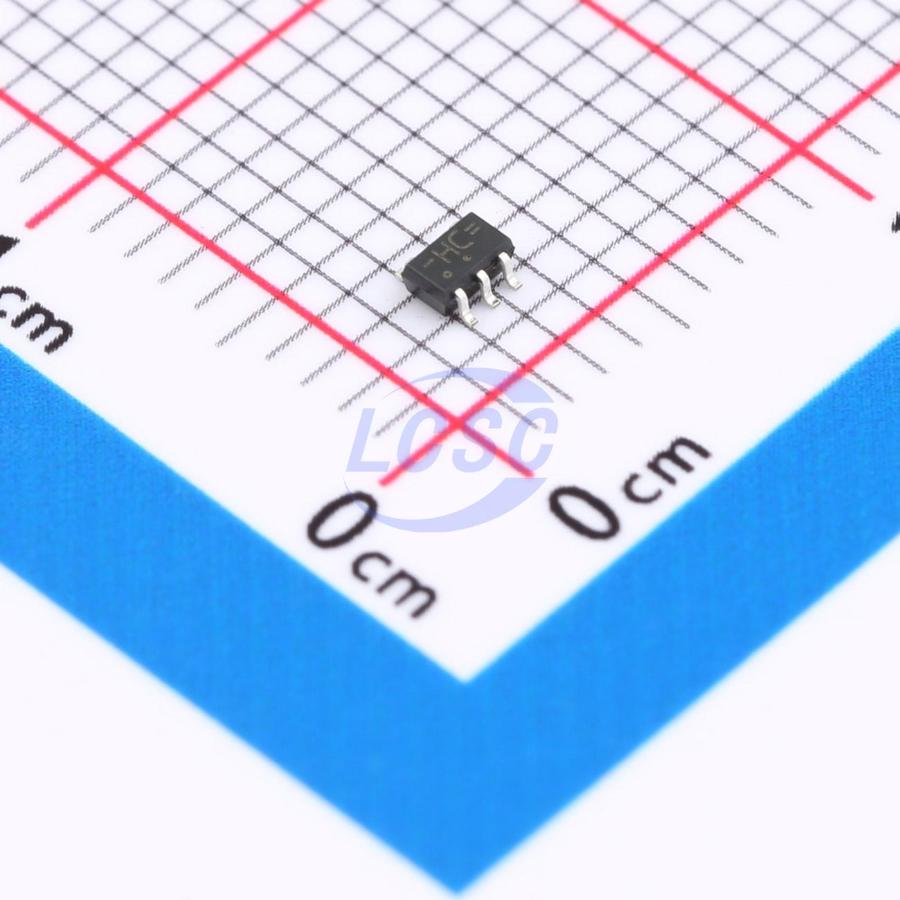

74HC1G04GW,125
StandardCMOS 2V~6V 23ns@6V,50pF 20uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
Inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC1G04GW,125
- Store part #
- C10234
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,600 in stock
#C10234
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.03 | ₹80.15 |
| 50+ | ₹12.53 | ₹626.50 |
| 150+ | ₹10.78 | ₹1,617.00 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.41 | ₹25,230.00 |
| 6,000+ | ₹7.89 | ₹47,340.00 |
5 × ₹16.03
₹80.15
excl. GST
₹94.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G04GW,125
₹80.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 23ns@6V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74HC1G04; 74HCT1G04 is a single inverter. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0V to 6.0V
- Input levels: For 74HC1G04: CMOS level; For 74HCT1G04: TTL level
- Symmetrical output impedance
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7V to 3.6V), JESD7A (2.0V to 6.0V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40°C to +85°C and -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HC1G04GW-Q100H#C546695Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 75 | ₹31.47 · 75 in stock | View | |
 | 74AHC1G04GW,125#C148197Nexperia · SOT-353 | Nexperia | SOT-353 | 3,345 | ₹9.82 · 3,345 in stock | View |
 | 74HC1GU04GW,125#C546712Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 1,015 | ₹21.06 · 1,015 in stock | View |
 | XC7SHU04GW,125#C461158Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 50 | ₹65.82 · 50 in stock | View |
 | EM74AHC1G04GW#C49188282EnergyMath · SOT-353 | EnergyMath | SOT-353 | 60 | ₹8.88 · 60 in stock | View |
