TECH PUBLICDatasheet (PDF)

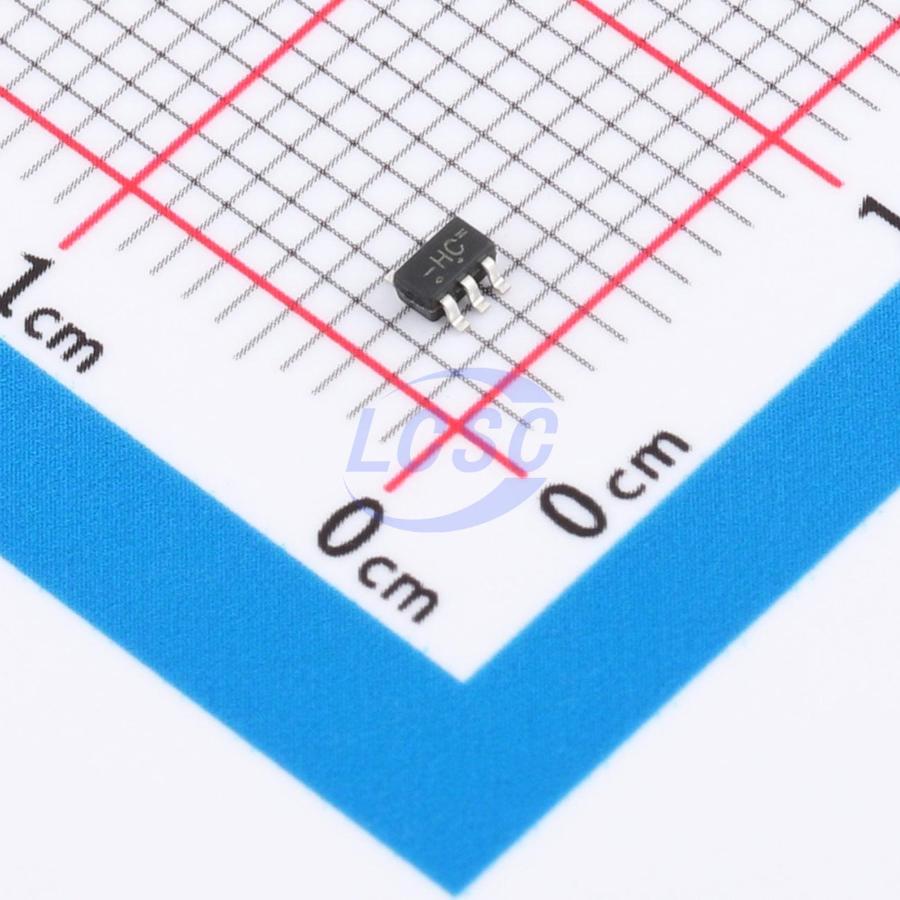

74HC1G04GW
2V~6V 9ns@6V,50pF 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G04GW
- Store part #
- C52205095
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,420 in stock
#C52205095
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.50 | ₹65.00 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.51 | ₹21,060.00 |
| 9,000+ | ₹3.29 | ₹29,610.00 |
10 × ₹6.50
₹65.00
excl. GST
₹76.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G04GW
₹65.00 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 9ns@6V,50pF
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The 74HC1G04 is a high-speed CMOS inverter fabricated using silicon gate CMOS technology. Combining the low-power characteristics of CMOS with high-speed performance comparable to the LS-TTL family, it features an internal three-stage buffered circuit structure that provides wide noise margins and stable output.
Key features
- Basic gate function belongs to the Renesas uni logic series.
- Embossed carrier tape packaging for high-speed automatic placement.
- Electrical characteristics equivalent to 74HC1G04
- Supply voltage range: 2 V ~ 6 V
- Operating temperature range: -40°C ~ +85°C
- |IOH| = |IOL| = 2 mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G04C5#C42460128TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,810 | ₹7.44 · 2,810 in stock | View |
