TECH PUBLIC

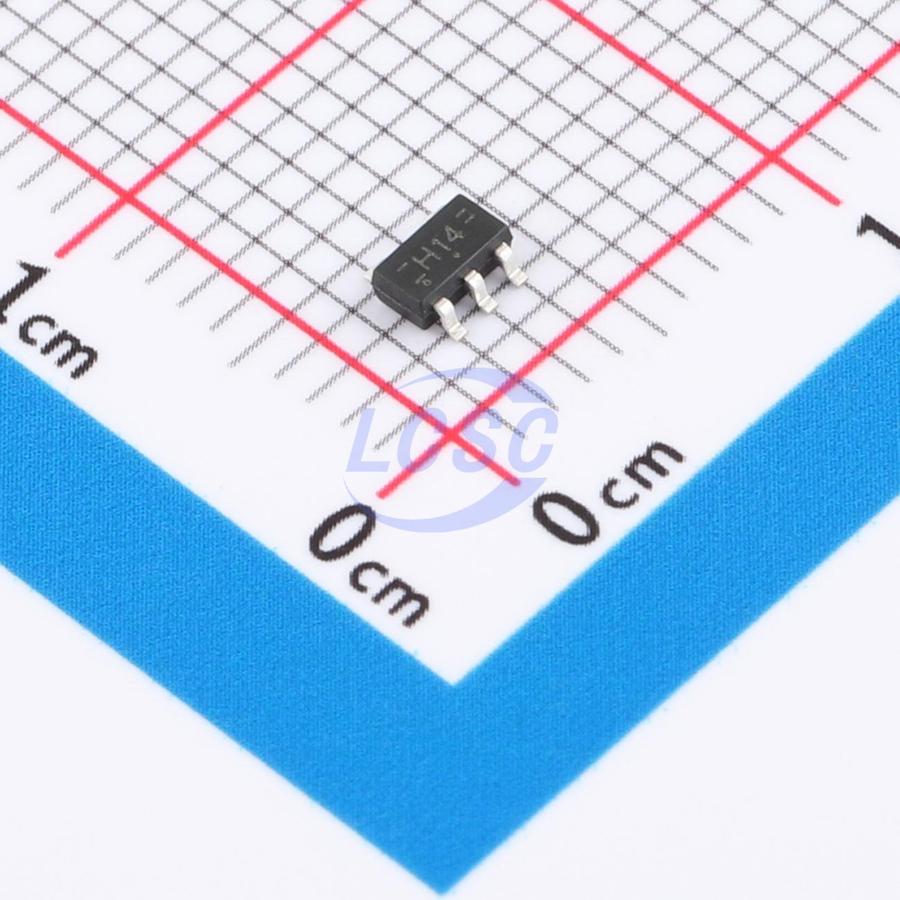

74HC1G14GV

Schmitt trigger 2V~6V 9ns@6V,50pF 10uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74HC1G14GV
Store part #: C52205102
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15,730 in stock

#C52205102

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.95	₹59.50
100+	₹4.70	₹470.00
300+	₹4.06	₹1,218.00
3,000+	₹3.59	₹10,770.00
6,000+	₹3.21	₹19,260.00
9,000+	₹3.03	₹27,270.00

Quantity (min 10, multiples of 10)

10 × ₹5.95

₹59.50

excl. GST

₹70.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC1G14GV

₹59.50 for 10 + GST

Specifications

Logic Family: 74HC
Input Type: Schmitt trigger
Voltage - Supply: 2V~6V
Output Logic Level - Low: 100mV;260mV;330mV
Propagation Delay: 9ns@6V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.9V;4.4V;5.9V;4.18V;5.68V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 2.6mA
Current - Output Low(IOL): 2.6mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The 74HC1G14 is a high-speed CMOS Schmitt trigger inverter fabricated using silicon gate CMOS technology. Combining the low-power characteristics of CMOS with high-speed performance comparable to the LS-TTL family, it features an internal three-stage buffered structure that provides wide noise margins and stable output.
