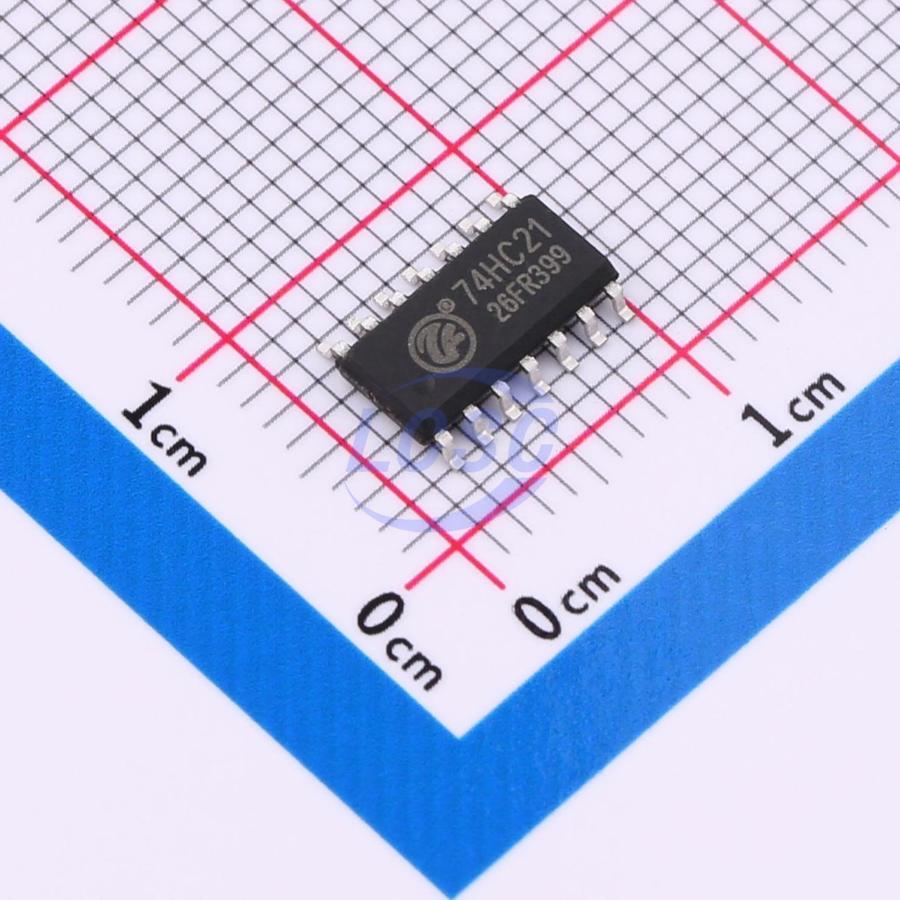

74HC21NS14ARDQ
2V~6V 10uA SOP-14 Gates and Inverters
SOP-14RoHSActive
Dual 4-Input AND Gates
- Manufacturer
- GR
- Manufacturer part #
- 74HC21NS14ARDQ
- Store part #
- C41414569
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,155 in stock
#C41414569
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.95 | ₹149.75 |
| 50+ | ₹23.95 | ₹1,197.50 |
| 150+ | ₹21.37 | ₹3,205.50 |
| 500+ | ₹18.16 | ₹9,080.00 |
| 2,500+ | ₹16.72 | ₹41,800.00 |
| 4,000+ | ₹15.86 | ₹63,440.00 |
5 × ₹29.95
₹149.75
excl. GST
₹176.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC21NS14ARDQ
₹149.75 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV~260mV
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V~5.9V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.347 g
Overview
This device contains two independent 4-input AND gates. Each gate performs the Boolean function Y = A ● B ● C ● D in positive logic.
Key features
- Buffered inputs
- Wide operating voltage range of 2V to 6V
- Wide operating temperature range: -40℃ to +85℃
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
