NexperiaDatasheet (PDF)

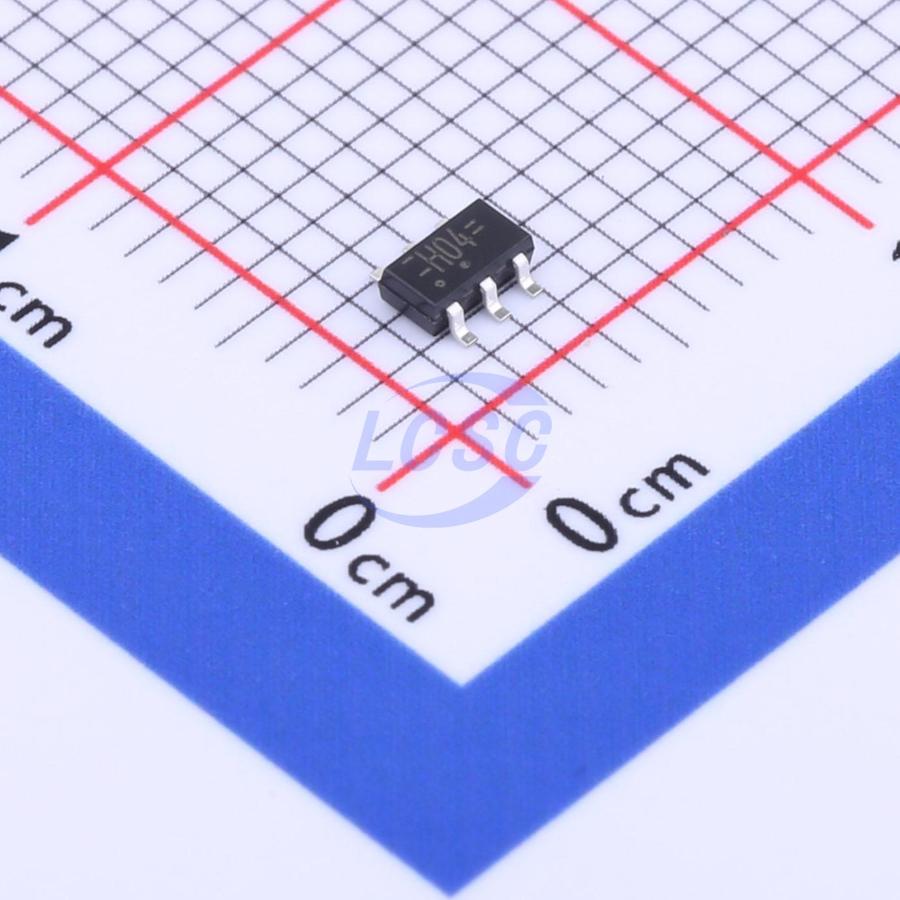

74HC2G04GV,125
StandardCMOS 2V~6V 13ns@6V,50pF 1uA 2 SC-74 Gates and Inverters RoHS
SC-74ROHS3 CompliantActive
Dual inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC2G04GV,125
- Store part #
- C546815
- Package / case
- SC-74
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,195 in stock
#C546815
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.19 | ₹225.95 |
| 50+ | ₹35.30 | ₹1,765.00 |
| 150+ | ₹31.06 | ₹4,659.00 |
| 500+ | ₹25.77 | ₹12,885.00 |
| 3,000+ | ₹23.42 | ₹70,260.00 |
| 6,000+ | ₹22.00 | ₹1,32,000.00 |
5 × ₹45.19
₹225.95
excl. GST
₹266.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G04GV,125
₹225.95 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV;330mV
- Propagation Delay
- 13ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 5.9V;4.4V;5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Overview
The 74HC2G04; 74HCT2G04 is a dual inverter. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G04: CMOS level For 74HCT2G04: TTL level
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G04DB(LX)#C22469912lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 380 | ₹6.80 · 380 in stock | View |
 | SN74LVC2GU04DB(LX)#C41430939lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 1,650 | ₹10.53 · 1,650 in stock | View |
 | 74LVC2G04W6-7#C460538DIODES · SOT-26 | DIODES | SOT-26 | 1,475 | ₹40.31 · 1,475 in stock | View |
 | EM74LVC2GU04GV#C49188088EnergyMath · SOT-23-6L | EnergyMath | SOT-23-6L | 55 | ₹120.26 · 55 in stock | View |
 | 74LVC2G04LT06ARCQ#C46527078GR · SOT-23-6 | GR | SOT-23-6 | 900 | ₹5.93 · 900 in stock | View |
