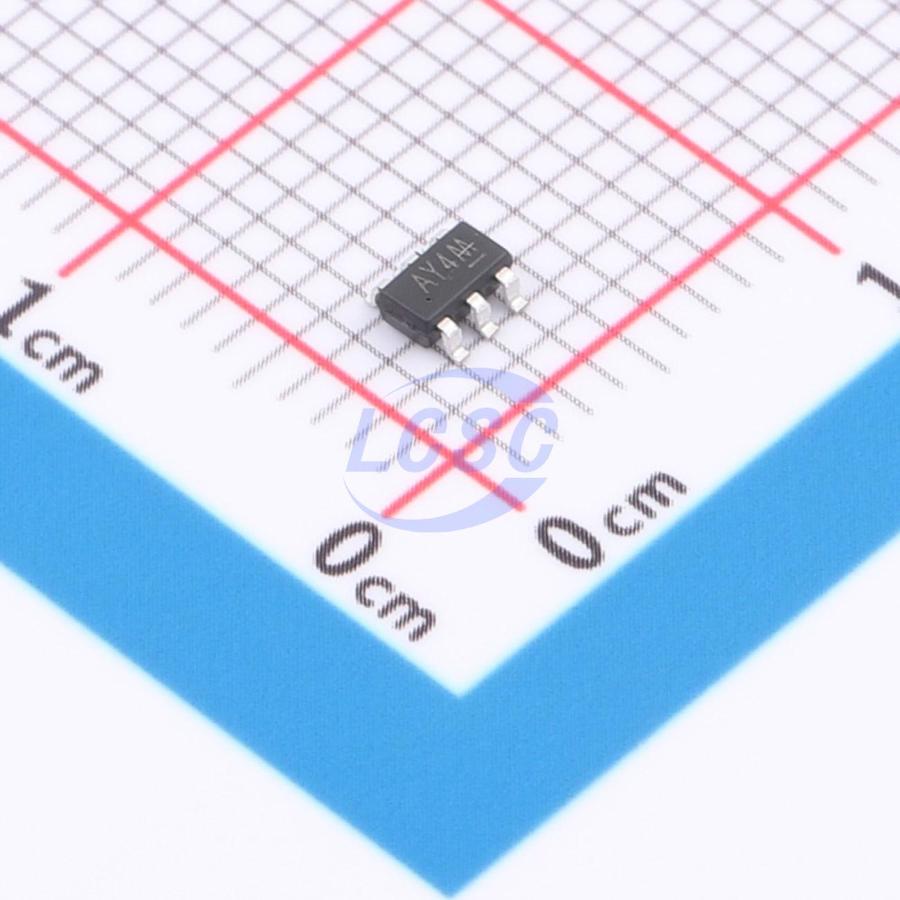

MDD(Microdiode Semiconductor)

74HC2G04GV

2V~5.5V 3.1ns@5V,15pF 10uA 2 SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74HC2G04GV
Store part #: C53185135
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,200 in stock

#C53185135

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.32	₹51.60
50+	₹8.14	₹407.00
150+	₹7.05	₹1,057.50
500+	₹6.23	₹3,115.00
3,000+	₹5.57	₹16,710.00
6,000+	₹5.24	₹31,440.00

Quantity (min 5, multiples of 5)

5 × ₹10.32

₹51.60

excl. GST

₹60.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC2G04GV

₹51.60 for 5 + GST

Specifications

Logic Family: 74HC
Voltage - Supply: 2V~5.5V
Propagation Delay: 3.1ns@5V,15pF
Output Logic Level - Low: 100mV;440mV
Input Logic Level - Low: 500mV;900mV;1.65V
Input Logic Level - High: 1.5V;2.1V;3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 10uA
Number of Channels: 2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The 74HC2G04 and 74HCT2G04 are dual inverters with overvoltage-tolerant inputs, allowing these devices to be used as level translators in mixed-voltage environments.

Key features

Wide supply voltage range: 2.0 V to 5.5 V
Input overvoltage tolerance up to 5.5 V
High noise immunity
CMOS low power consumption
Latch-up performance exceeds 200 mA
Symmetrical output impedance
Balanced propagation delay
Input levels: CMOS for 74HC2G04; TTL for 74HCT2G04
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
