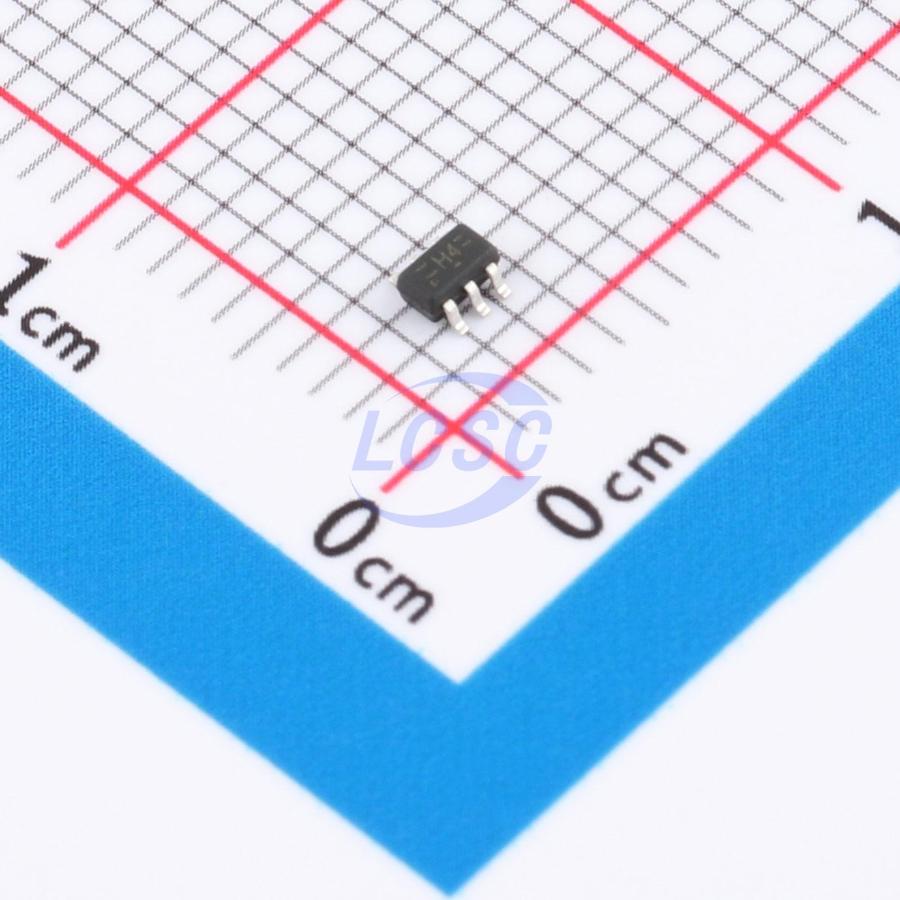

74HC2G04GW
2V~6V 6ns@6V,50pF 1uA SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC2G04GW
- Store part #
- C52205109
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,030 in stock
#C52205109
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.14 | ₹81.40 |
| 100+ | ₹6.42 | ₹642.00 |
| 300+ | ₹5.56 | ₹1,668.00 |
| 3,000+ | ₹4.91 | ₹14,730.00 |
| 6,000+ | ₹4.39 | ₹26,340.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹8.14
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G04GW
₹81.40 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 6ns@6V,50pF
- Output Logic Level - High
- 1.9V~2V;4.4V~4.5V;5.9V~6V;4.18V~4.32V;5.68V~5.81V
- Quiescent Current(Iq)
- 1uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74HC2G04 is a dual inverter. The inputs include clamping diodes, allowing the use of current-limiting resistors to interface the inputs to voltages above VCC.
Applications
- Audio/Video receivers
- Audio docking stations
- IP phones
- Embedded PCs
- PDAs
- Power supplies
Key features
- Operating voltage range: 2.0~6.0V
- High noise immunity
- Balanced propagation delay
- Low power consumption, maximum ICC of 10μA
- ESD protection exceeding JESD 22 standard
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
