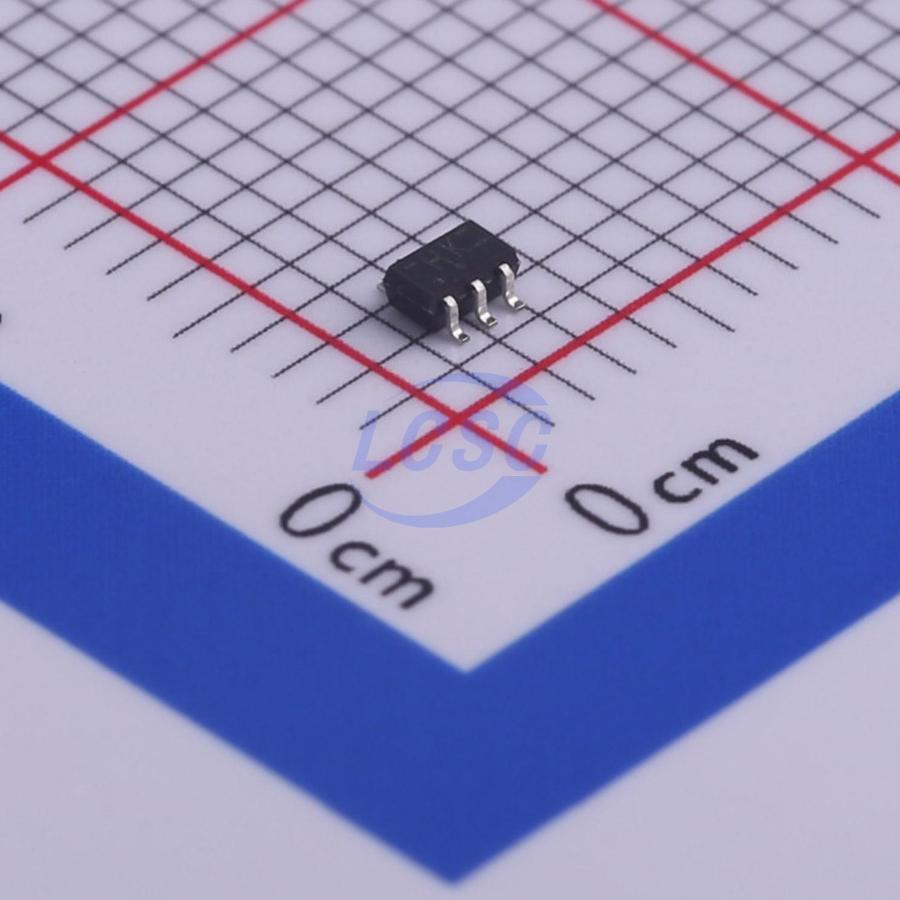

Dual inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC2G14GW,125
- Store part #
- C456096
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,100 in stock
#C456096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.24 | ₹156.20 |
| 50+ | ₹24.49 | ₹1,224.50 |
| 150+ | ₹21.59 | ₹3,238.50 |
| 500+ | ₹17.98 | ₹8,990.00 |
| 3,000+ | ₹16.38 | ₹49,140.00 |
| 6,000+ | ₹15.41 | ₹92,460.00 |
5 × ₹31.24
₹156.20
excl. GST
₹184.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G14GW,125
₹156.20 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV~330mV
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.13V~2V;1.5V~2.6V
- Input Logic Level - High
- 1.5V~4.2V
- Output Logic Level - High
- 4.4V~5.9V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The 74HC2G14; 74HCT2G14 is a dual inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shaper for highly noisy environments
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G14: CMOS level For 74HCT2G14: TTL level
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Unlimited input rise and fall times
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
