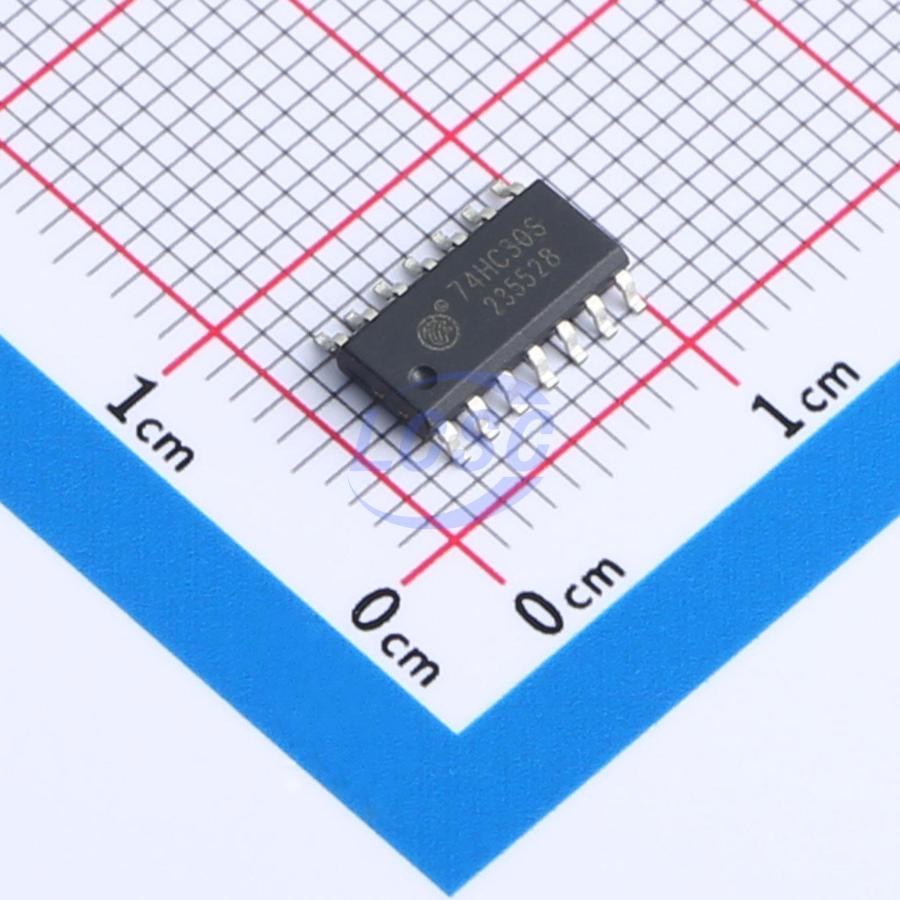

74HC30S
NAND Gate IC 1 Channel SOP-14
SOP-14RoHSActive
Logic gate
- Manufacturer
- GR
- Manufacturer part #
- 74HC30S
- Store part #
- C19818870
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,525 in stock
#C19818870
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.88 | ₹74.40 |
| 50+ | ₹12.99 | ₹649.50 |
| 150+ | ₹12.19 | ₹1,828.50 |
| 500+ | ₹11.18 | ₹5,590.00 |
| 2,500+ | ₹10.73 | ₹26,825.00 |
| 4,000+ | ₹10.46 | ₹41,840.00 |
5 × ₹14.88
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC30S
₹74.40 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 25ns@5.0V,15pF
- Output Logic Level - Low
- 100mV
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V~5.9V
- Quiescent Current(Iq)
- 5.5uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 1;8
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The 74HC30 is a low-power 8-input NAND gate IC designed using advanced CMOS technology. It integrates an 8-input NAND gate circuit with buffered push-pull outputs, offering strong noise immunity and drive capability. Its logic function and standard pinout are compatible with the 54/74LS series logic gates.
Applications
- Digital logic driving, industrial control applications, and other application fields
Key features
- Low input current: ≤1μA
- Wide operating voltage range: 2.0V ~ 6.0V
- Low quiescent current: Icc ≤ 5.5μA @ VCC = 6V, Ta = 25℃
- Package: DIP14, SOP14
