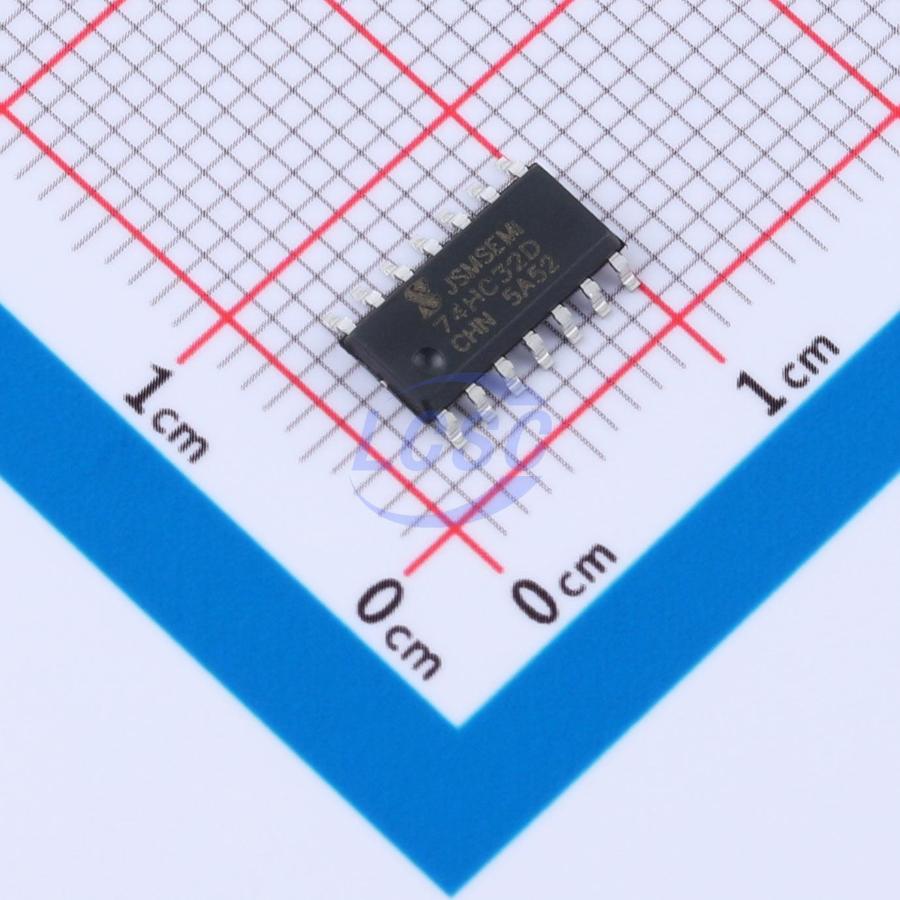

74HC32D,653-JSM
StandardCMOS 2V~6V 15ns@6V 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC32D,653-JSM
- Store part #
- C53114366
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C53114366
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.53 | ₹1,279.50 |
| 500+ | ₹7.59 | ₹3,795.00 |
| 2,500+ | ₹6.84 | ₹17,100.00 |
| 5,000+ | ₹6.47 | ₹32,350.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC32D,653-JSM
₹61.40 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 15ns@6V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.279 g
Overview
The 74HC/HCT32 is a quad 2-input OR gate. Inputs include clamp diodes, allowing input interfaces to voltages exceeding VCC through current-limiting resistors.
Key features
- 74HC32: CMOS-level inputs
- 74HCT32: TTL-level inputs
- Operating temperature range: -40℃ ~ +125℃
- Package: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC32DR-JSM#C53436302JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 1,090 | ₹10.85 · 1,090 in stock | View |
