JSMSEMI

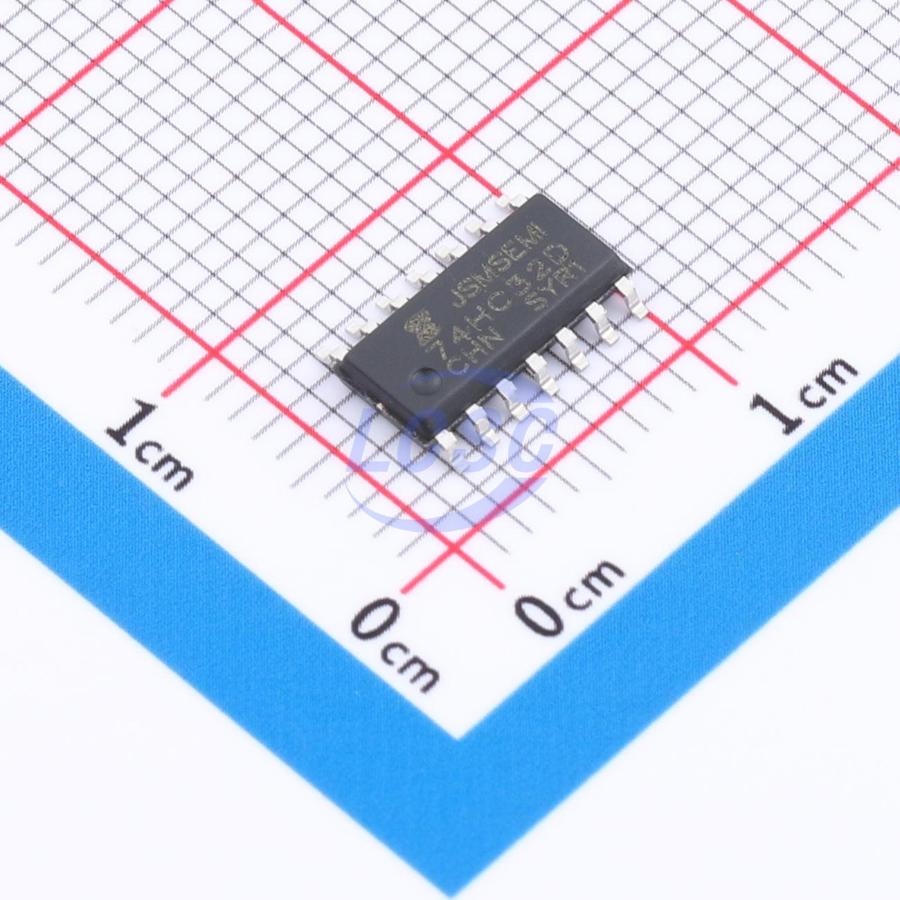

SN74HC32DR-JSM

StandardCMOS 2V~6V 15ns@6V,50pF 2uA SOP-14 Gates and Inverters RoHS

SOP-14ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC32DR-JSM
Store part #: C53436302
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,090 in stock

#C53436302

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.85	₹54.25
50+	₹8.64	₹432.00
150+	₹7.53	₹1,129.50
500+	₹6.69	₹3,345.00
2,500+	₹6.03	₹15,075.00
5,000+	₹5.70	₹28,500.00

Quantity (min 5, multiples of 5)

5 × ₹10.85

₹54.25

excl. GST

₹64.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC32DR-JSM

₹54.25 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74HC
Voltage - Supply: 2V~6V
Output Logic Level - Low: 0V~100mV;150mV~260mV;160mV~260mV
Propagation Delay: 15ns@6V,50pF
Input Logic Level - High: 1.2V~1.5V;2.4V~3.15V;3.2V~4.2V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 500mV~800mV;1.35V~2.1V;1.8V~2.8V
Output Logic Level - High: 1.9V~2V;4.4V~4.5V;5.9V~6V;3.98V~4.32V;5.48V~5.81V
Quiescent Current(Iq): 2uA
Number of Channels: 2;4

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.275 g

Overview

74HC/HCT32 is a quad 2-input OR gate. Inputs include clamp diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
