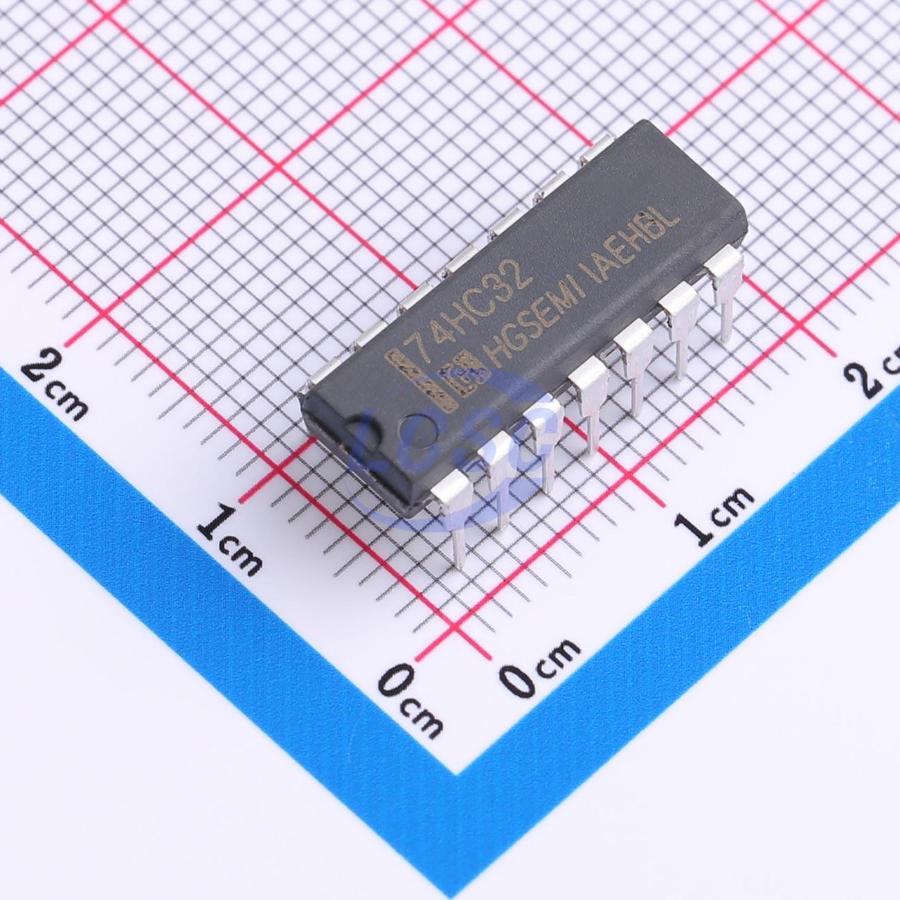

HGSEMI

74HC32N

OR Gate IC 4 Channel DIP-14

DIP-14RoHSActive

4-channel 2-input OR gate

Manufacturer: HGSEMI
Manufacturer part #: 74HC32N
Store part #: C41427253
Package / case: DIP-14
Category: Gates and Inverters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,295 in stock

#C41427253

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.44	₹102.20
50+	₹15.96	₹798.00
150+	₹14.04	₹2,106.00
500+	₹11.63	₹5,815.00
2,500+	₹10.56	₹26,400.00
5,000+	₹9.92	₹49,600.00

Quantity (min 5, multiples of 5)

5 × ₹20.44

₹102.20

excl. GST

₹120.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

74HC32N

₹102.20 for 5 + GST

Specifications

Logic Family: 74HC Series
Voltage - Supply: 2V~6V
Output Logic Level - Low: 0V~260mV
Propagation Delay: 90ns@2V,50pF
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.9V~6V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 25mA
Number of Channels: 4;2
Current - Output Low(IOL): 25mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

The 74HC32 is a high-speed silicon-gate CMOS circuit, pin-compatible with Low-power Schottky TTL (LSTTL) series, implementing quad 2-input OR gate functionality. The device conforms to JEDEC standard no.7A, with a wide operating voltage range of 2.0V to 6.0V, featuring symmetrical output impedance, low noise, low power consumption, and consistent propagation delay. It provides ESD protection: Human Body Model (EIA/JESD22-A114-A) exceeding 2000V, and Machine Model (EIA/JESD22-A115-A) exceeding 200V. Operating temperature range: -40 ~ 85℃. Available packages: DIP-14, SOP-14, and TSSOP-14.

Key features

Wide supply voltage range: 2.0V - 6.0V
Symmetrical output impedance
Low noise
Low power consumption
Stable propagation delay
ESD protection: Human Body Model (EIA/JESD22-A114-A) exceeds 2000V; Machine Model (EIA/JESD22-A115-A) exceeds 200V
Operating temperature range: -40 ~ 85℃
Package: DIP-14/SOP-14/TSSOP-14
