HGSEMIDatasheet (PDF)

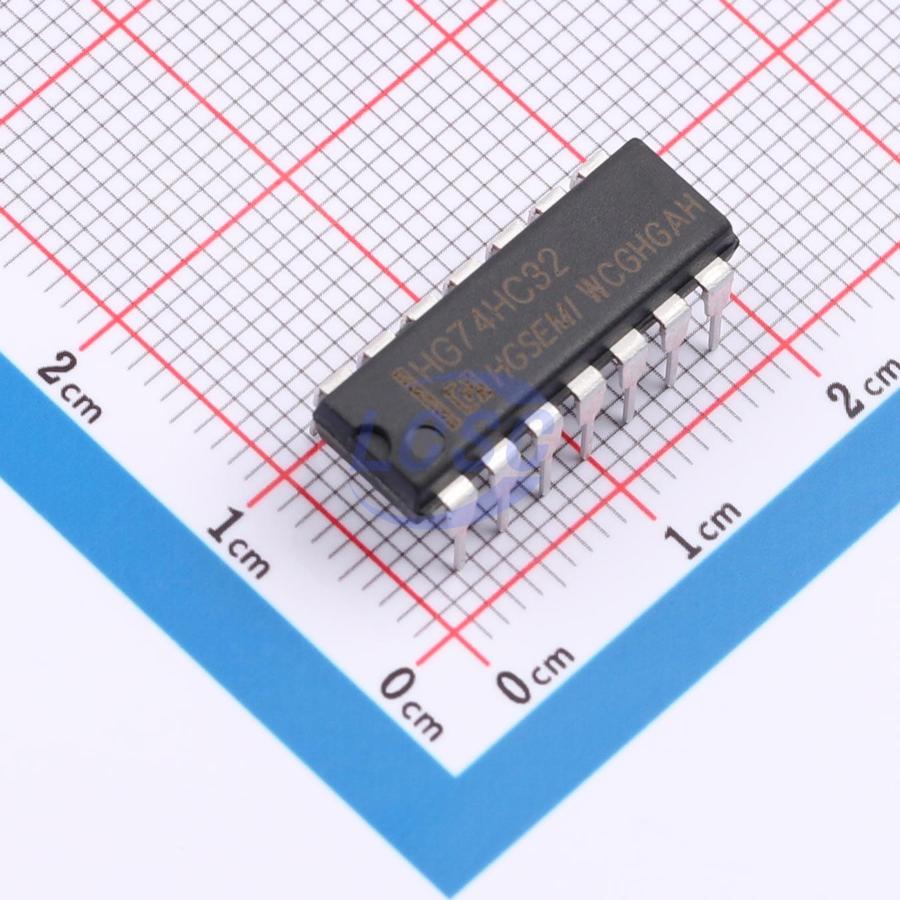

HG74HC32N
TTL-compatible CMOS 2V~6V 15ns@6V,50pF 2uA DIP-14 Gates and Inverters
DIP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG74HC32N
- Store part #
- C53155525
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,785 in stock
#C53155525
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.70 | ₹88.50 |
| 50+ | ₹14.08 | ₹704.00 |
| 150+ | ₹12.28 | ₹1,842.00 |
| 500+ | ₹10.91 | ₹5,455.00 |
| 2,000+ | ₹9.83 | ₹19,660.00 |
| 5,000+ | ₹9.29 | ₹46,450.00 |
5 × ₹17.70
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
HG74HC32N
₹88.50 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 15ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.896 g
Overview
HG74HC32 is a high-speed silicon-gate CMOS circuit pin-compatible with low-power Schottky TTL series, implementing 2-input OR gate function. The circuit complies with JEDEC 7A standard, featuring wide operating voltage range, symmetrical output impedance, low noise, low power consumption, and stable propagation delay characteristics. It provides ESD protection exceeding 2000V in human body model and exceeding 200V in machine model. Operating ambient temperature range is -40 ~ 85℃, available in DIP-14, SOP-14, and TSSOP-14 package options. This product is neither licensed nor warranted for use in applications where failure or malfunction could cause serious consequences. Such use is considered unsafe; users must evaluate and assume all associated risks. Any issues and liabilities arising from use outside the intended application scope shall be borne solely by the user.
Key features
- Wide operating voltage range: 2.0V ~ 6.0V
- Symmetrical output impedance
- Low noise
- Low power consumption
- Stable propagation delay
- ESD protection: HBM exceeds 2000V, MM exceeds 200V
- Operating temperature range: -40 ~ 85℃
- Package types: DIP-14, SOP-14, TSSOP-14
