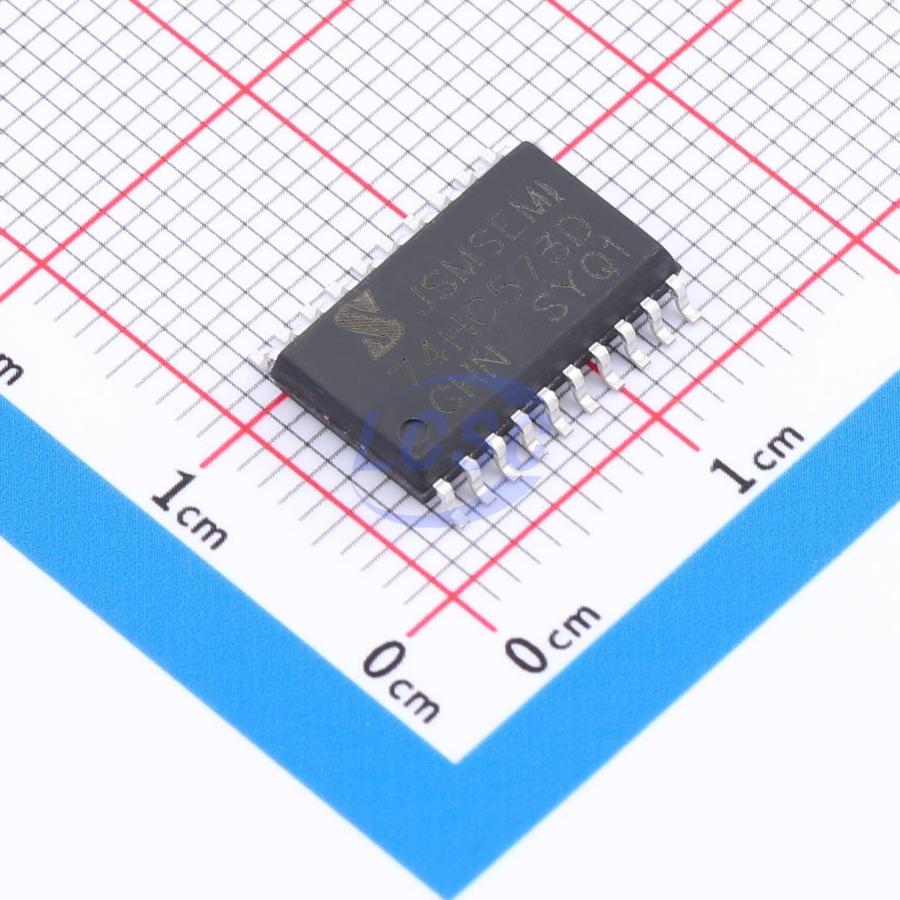

74HC573D-JSM
D Latch 2V~6V 8 26ns SOP-20 Latches RoHS
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,215 in stock
#C53114437
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.28 | ₹116.40 |
| 50+ | ₹18.42 | ₹921.00 |
| 150+ | ₹16.34 | ₹2,451.00 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 2,000+ | ₹12.57 | ₹25,140.00 |
| 4,000+ | ₹11.88 | ₹47,520.00 |
5 × ₹23.28
₹116.40
excl. GST
₹137.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC573D-JSM
₹116.40 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Current - Output High(IOH)
- 7.8mA
- Number of Gates
- 8
- Setup Time
- 3ns
- Hold Time
- 1ns
- Propagation Delay
- 26ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.76 g
Overview
The 74HC/HCT573 is an 8-bit D-type latch with three-state outputs. The device features a Latch Enable (LE) pin and an Output Enable (OE) pin. When LE is HIGH, input data is passed to the latches, and the device operates in transparent mode — the outputs change in response to their corresponding D inputs. When LE is LOW, the latches store the input information that was present one setup time before the falling edge of LE. A HIGH on OE forces all outputs into a high-impedance state. OE operation does not affect the internal state of the latches. Input clamping diodes are provided, allowing the input interfaces to be connected to voltages higher than VCC through current-limiting resistors.
Key features
- Input levels: CMOS for 74HC573; TTL for 74HCT573
- Input and output pins on opposite sides of the package for easy microprocessor interfacing
- Suitable as I/O ports for microprocessors and microcomputer systems
- Three-state non-inverting outputs for bus applications
- Common three-state output enable input
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP20, SOP20, TSSOP20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC373D-JSM#C53114279JSMSEMI · SOP-20 | JSMSEMI | SOP-20 | 1,225 | ₹22.70 · 1,225 in stock | View |
