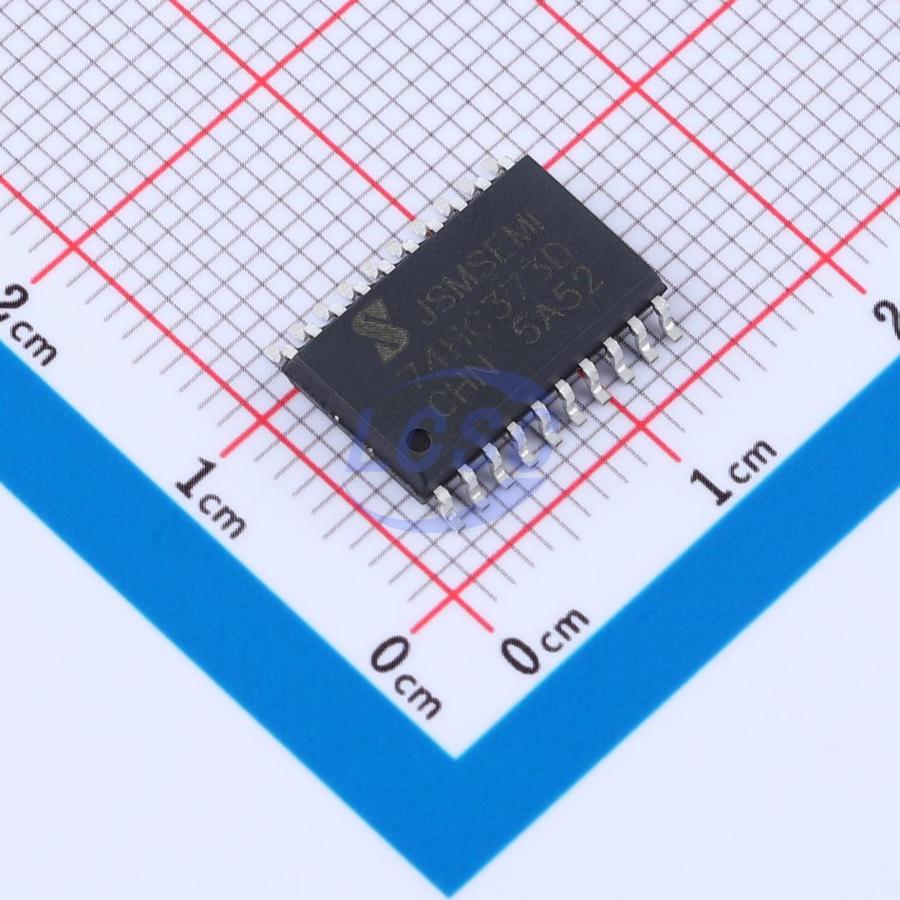

SN74HC373D-JSM
D Latch 2V~6V 8 26ns SOP-20 Latches RoHS
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,225 in stock
#C53114279
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.70 | ₹113.50 |
| 50+ | ₹17.98 | ₹899.00 |
| 150+ | ₹15.96 | ₹2,394.00 |
| 500+ | ₹13.44 | ₹6,720.00 |
| 2,000+ | ₹12.32 | ₹24,640.00 |
| 4,000+ | ₹11.64 | ₹46,560.00 |
5 × ₹22.70
₹113.50
excl. GST
₹133.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC373D-JSM
₹113.50 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 4ns
- Number of Gates
- 8
- Hold Time
- -2ns
- Propagation Delay
- 26ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.864 g
Overview
The 74HC/HCT373 is an 8-bit D-type latch with three-state outputs. The device features a latch enable (LE) and an output enable (OE) input. When LE is HIGH, data at the inputs enters the latches; the latches are transparent and the outputs change with the corresponding D inputs. When LE is LOW, the latches store the input information that was present one setup time prior to the falling edge of LE. When OE is HIGH, the outputs are in a high-impedance state. The OE operation does not affect the internal state of the latches. Input clamping diodes are included, allowing the input interface to be connected to voltages exceeding VCC through current-limiting resistors.
Key features
- Input levels: CMOS for 74HC373; TTL for 74HCT373
- Three-state non-inverting outputs for bus applications
- Common three-state output enable input
- Functionally equivalent to 74HC/HCT563 and 74HC/HCT573
- Operating temperature range: -40℃ to +125℃
- Package types: DIP20/SOP20/TSSOP20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC573D-JSM#C53114437JSMSEMI · SOP-20 | JSMSEMI | SOP-20 | 1,215 | ₹23.28 · 1,215 in stock | View |
